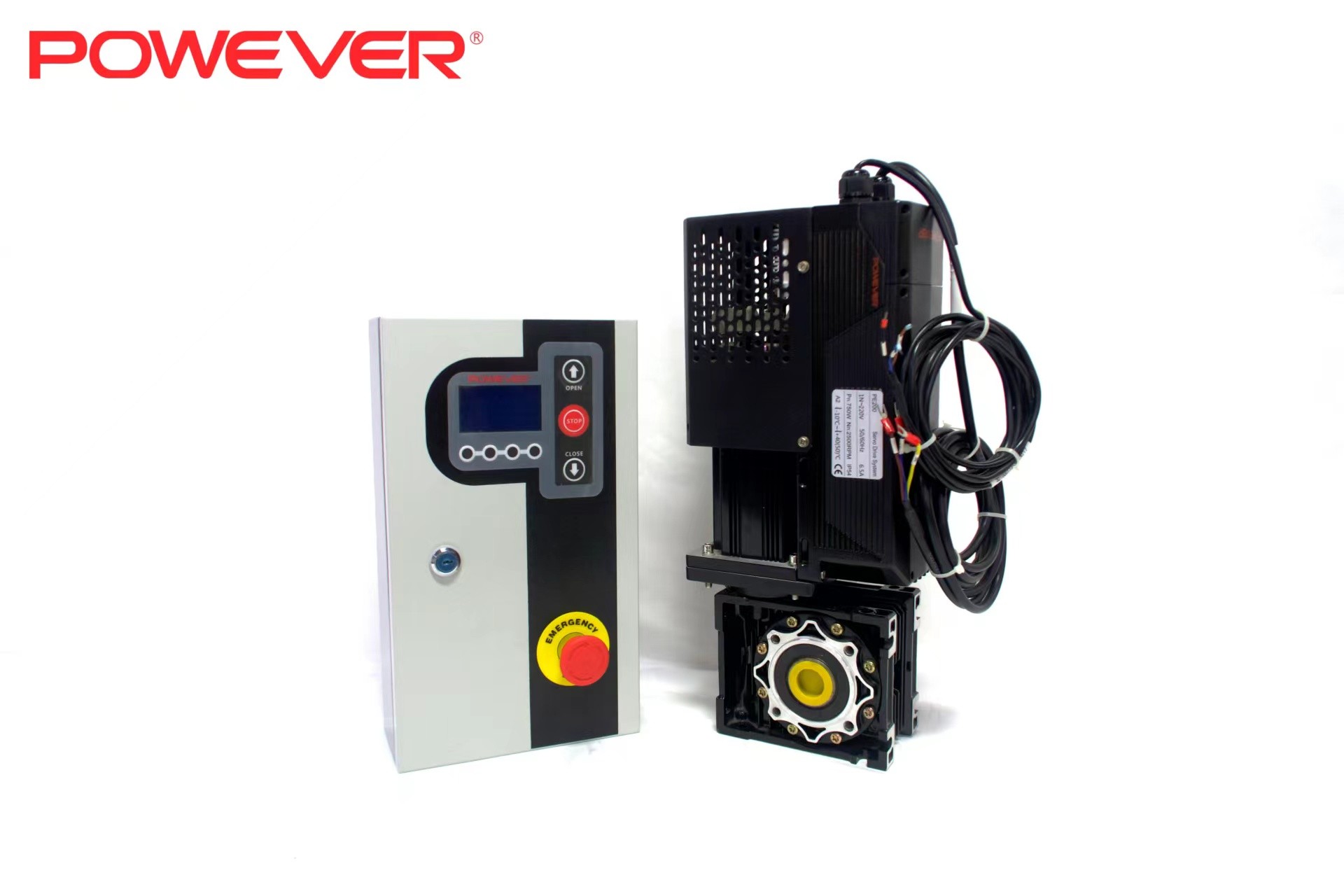

A2 Series PE200 750W for Flexible High Speed Door
- Product Item : PE200
- Category： A2 Series
POWEVER High-Speed Door Motor features an advanced integrated intelligent control system, servo-driven precision components, and patented safety protection technology, ensuring top-tier performance in safety, stability, speed, and efficiency. Additionally, it combines industrial aesthetics with functional design, utilizing automated laser precision cutting and high-quality components to deliver a high-performance, durable product.
Features

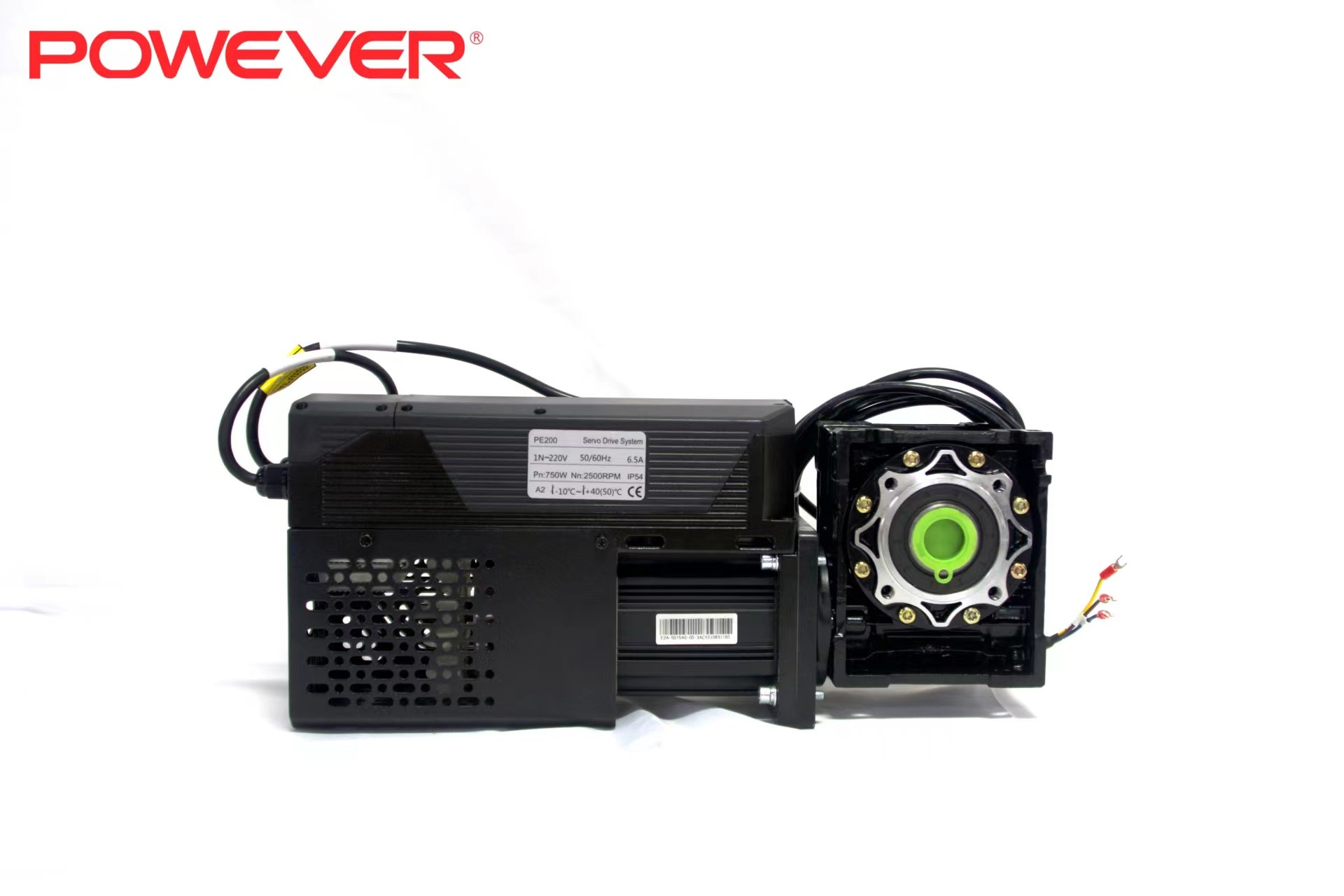

Motor
RATIO
1:10
1:15
1:25
MOTOR TYPE
- - -Servo Motor- - -
WORKING SYSTEM
S3
POWER W
- - -750W- - -
POWER SUPPLY V
- - -1- 220V±10%- - -
OUTPUT SPEED RPM
50~250
33~167
20~100
OUTPUT TORQUE N.M
28.6
42.9
71.5
DOOR OPENING SPEED M/S
1.3~2.6
0.9~1.7
0.5~1.0
DOOR WEIGHT KG
17~34
26~51
40~79
OPENING AND CLOSING SPEED
- - -Adjustable- - -
SOFT START AND STOP
✓
MOTOR IP LEVEL
- - -54- - -
WORKING ENVIRONMENT ℃
- - --10~+40- - -

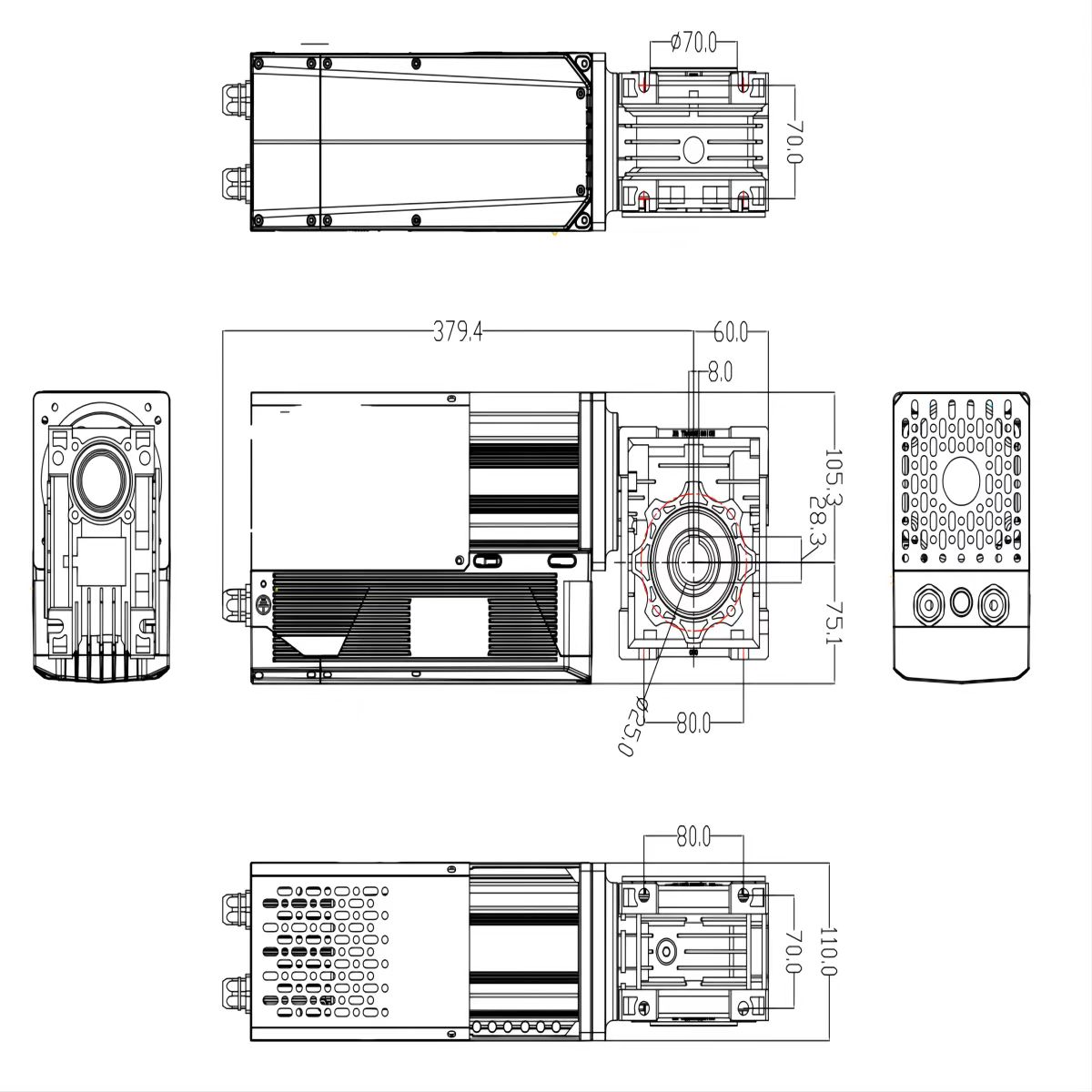

HOLLOW SHAFT MM
- - -25- - -
INCREMENTAL ENCODER
✓
ABSOLUTE ENCODER (BUILT-IN)
✓
CABLE LENGTH m
4
HANDLE
✓
ELECTRONIC MECHANICAL BRAKE
✓
WEIGHT
- - -10.4kg- - -
CE CERTIFICATION
✓
|

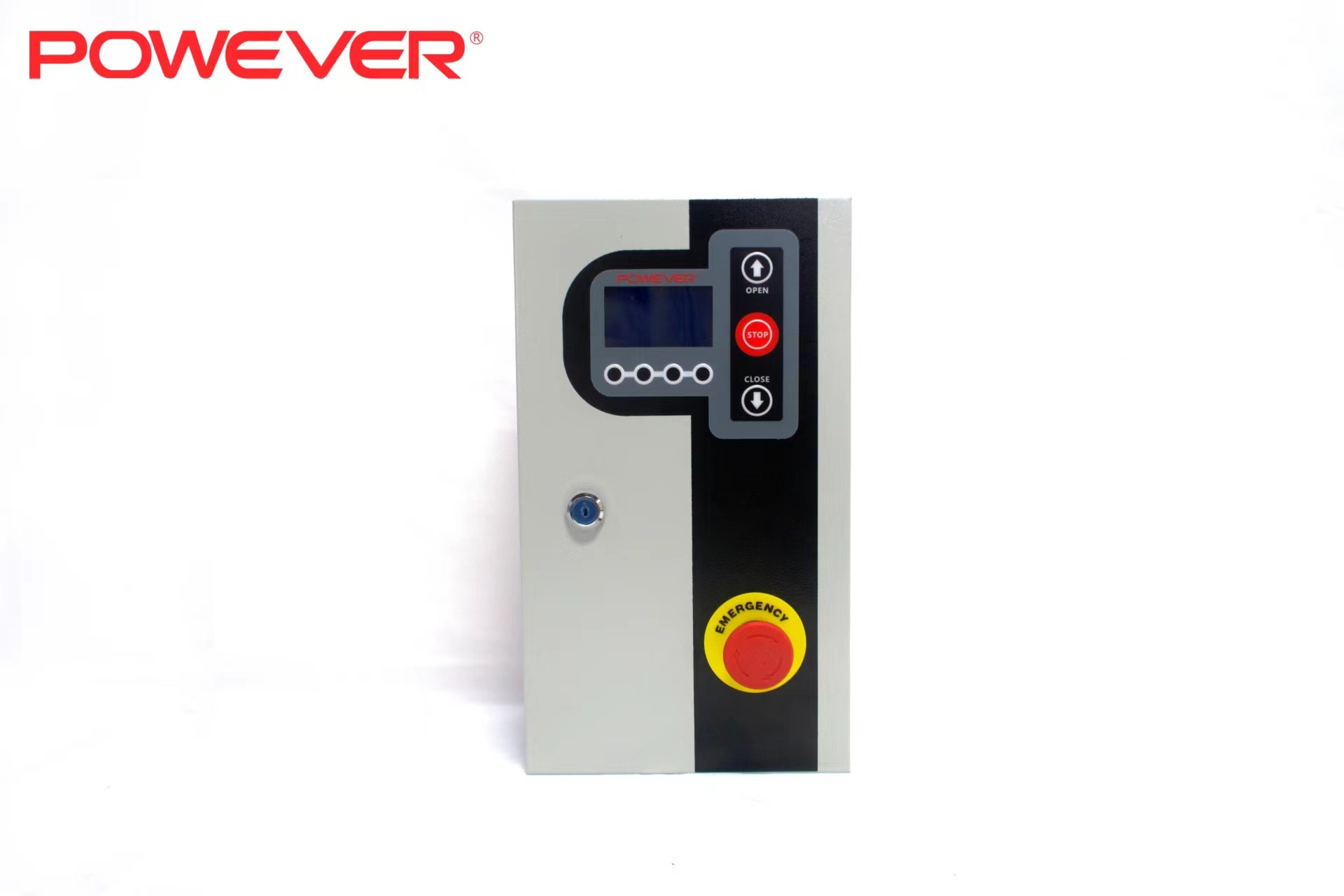

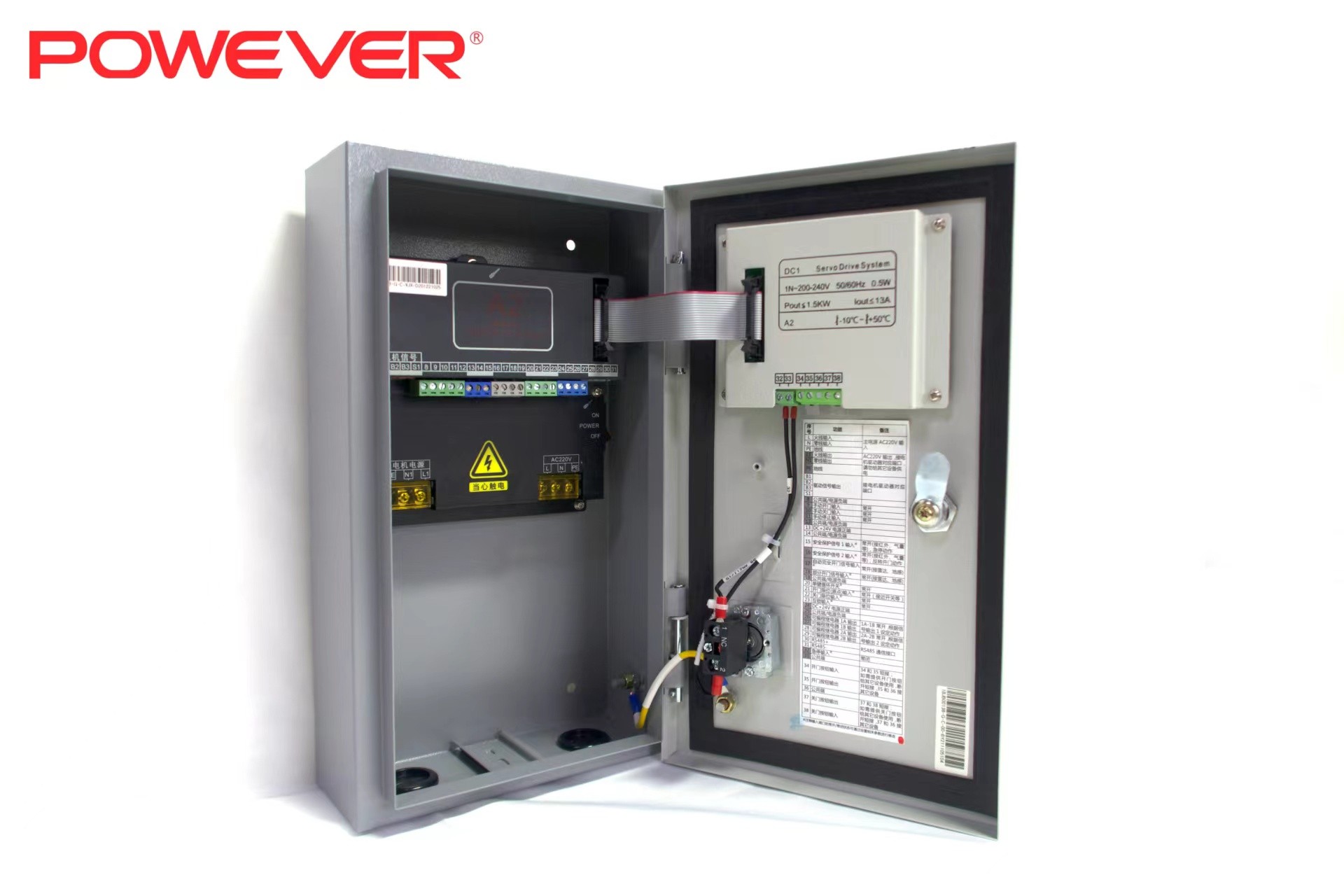

CONTROLLER |
|
|

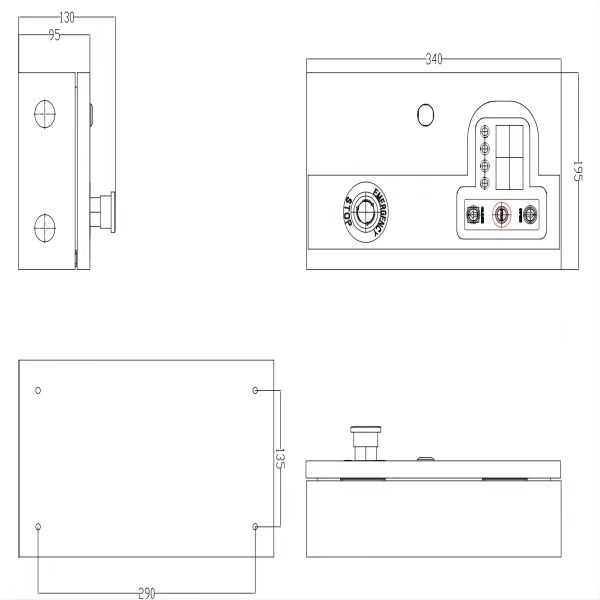

DIMENSIONS MM |
340*195*95 |
|
DISPLAY |
4 Lines Text Display |
|
OPERATION STATUS DISPLAY |
Current/Speed/Height ,Three modes |
|
AUTOMATIC CLOSING DELAY sec. |
1~240* |
|
OPEN/CLOSE SPEED SETTINGS |
✓ |
|
SOFT START AND SOFT STOP |
✓ |
|
OPEN/CLOSE SLOWDOWN DISTRICT |
✓ |
|
PARTIAL OPENING HEIGHT (%) |
✓ |
|
ERROR REPORT |
✓ |
|
FAULT MEMORY |
✓ |
|
MAINTENANCE REMINDER |
✓ |
|
JOG MODE |
✓ |
|
MOTOR REVERSE RUNNING |
✓ |
|
NC/NO SWITCHING |
✓ |
|
ANTI-FROZEN SHAKING |
✓ |
|
TORQUE ADJUSTMENT |
✓ |
|
OPENING DELAY |
✓ |
|
AUTOMATIC TEST |
✓ |
|
MAINTENANCE INFORMATION |
✓ |
|
AIR SWITCH |
× |
|
OPEN/CLOSE/STOP INPUT |
✓ |
|
RS485 |
✓ |
|
SAFETY SIGNAL 1 INPUT |
✓ |
|
SAFETY SIGNAL 2 INPUT |
✓ |
|
PARTIAL OPENING SIGNAL INPUT |
✓ |
|
AUTOMATIC FULLY OPENING SIGNAL INPUT |
✓ |
|
MANUAL/AUTOMATIC SWITCHING INPUT |
✓ |
|
INTERLOCK INPUT |
✓ |
|
PROGRAMMABLE RELAY OUTPUT |
2 Groups(could be expanded to 4 groups) |
|
DC24V OUTPUT |
0.4A≈10W |
|
WEIGHT |
3.2kg |
We've achieved precise control over position, speed, and torque with a fully closed-loop servo system. Our high-precision
electronic limits ensure there's no deviation during long-term operation. Also eliminating the need for climbing to set limits and ensuring operator safety.
2. Stable
Our integrated design includes EMC electromagnetic compatibility features. We continuously monitor motor output data in real-time, allowing us to assess the status of balance systems like torsion springs and tension springs, as well as detect any jamming point.
Our system offers adjustable speeds for flexible operation. The lifting door system can reach a rated output speed of 133RMP, with a maximum lifting speed of 1.95M/s.
The system operates smoothly without any shaking, minimizing the impact on its mechanical structure and significantly extending its service life.
5. Security
Our system is equipped with various protection methods, including overvoltage, undervoltage, overcurrent, and short circuit protection. With an emergency signal response time of under 30 milliseconds, we ensure the safety of both people and objects.
Logistic Center Workshop Refrigeration Airport
