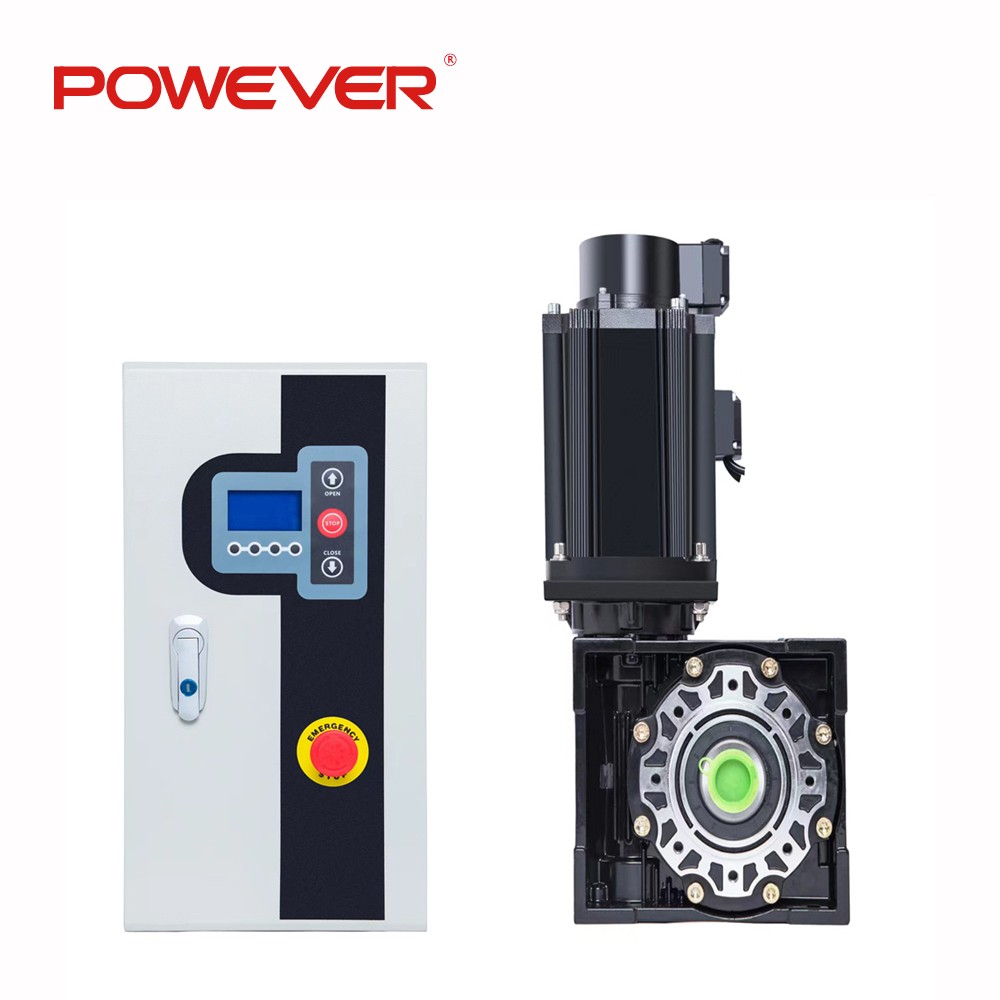

A1 Series PE715 2200W for Flexible High Speed Door - 副本
- Product Item : PE715
- Category： A1 Series
Flexible High-Speed Doors are specifically designed for high-frequency access requirements, combining efficiency with safety. Their rapid opening/closing function significantly improves traffic flow in factories, logistics parks, warehouses, workshops and parking lots while effectively isolating work environments. Thanks to their compact structure and superior sealing performance, these doors are also ideal for demanding environments such as laboratories where dustproof and explosion-proof standards are critical.
POWEVER utilizes an advanced servo control system to deliver exceptional performance for your spiral doors:
- Ultra-Fast Response: 30ms reaction time for instant operation
- Precision Control: High-precision servo drive technology ensures smooth, error-free movement
- Long-Lasting Durability: Soft start/stop function significantly reduces mechanical wear
- Smart Integration: Supports seamless multi-device synchronization to enhance overall system efficiency
|

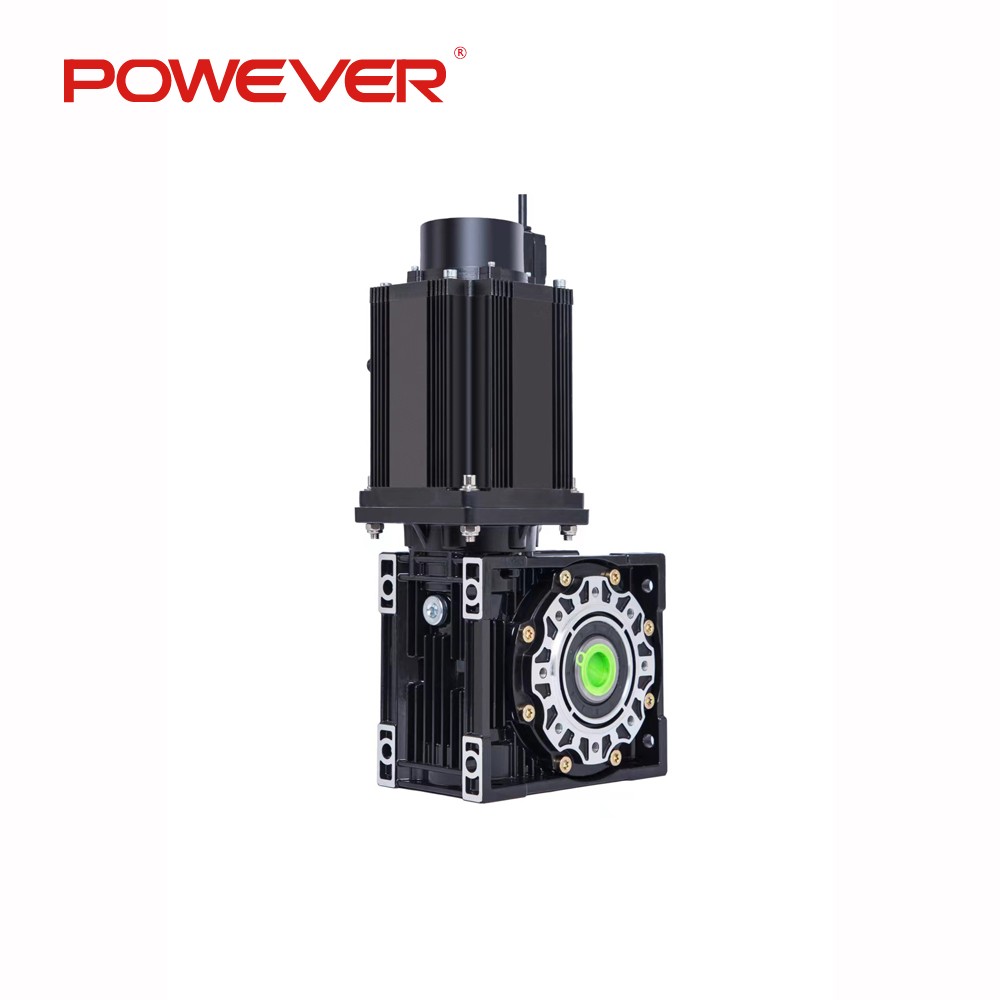

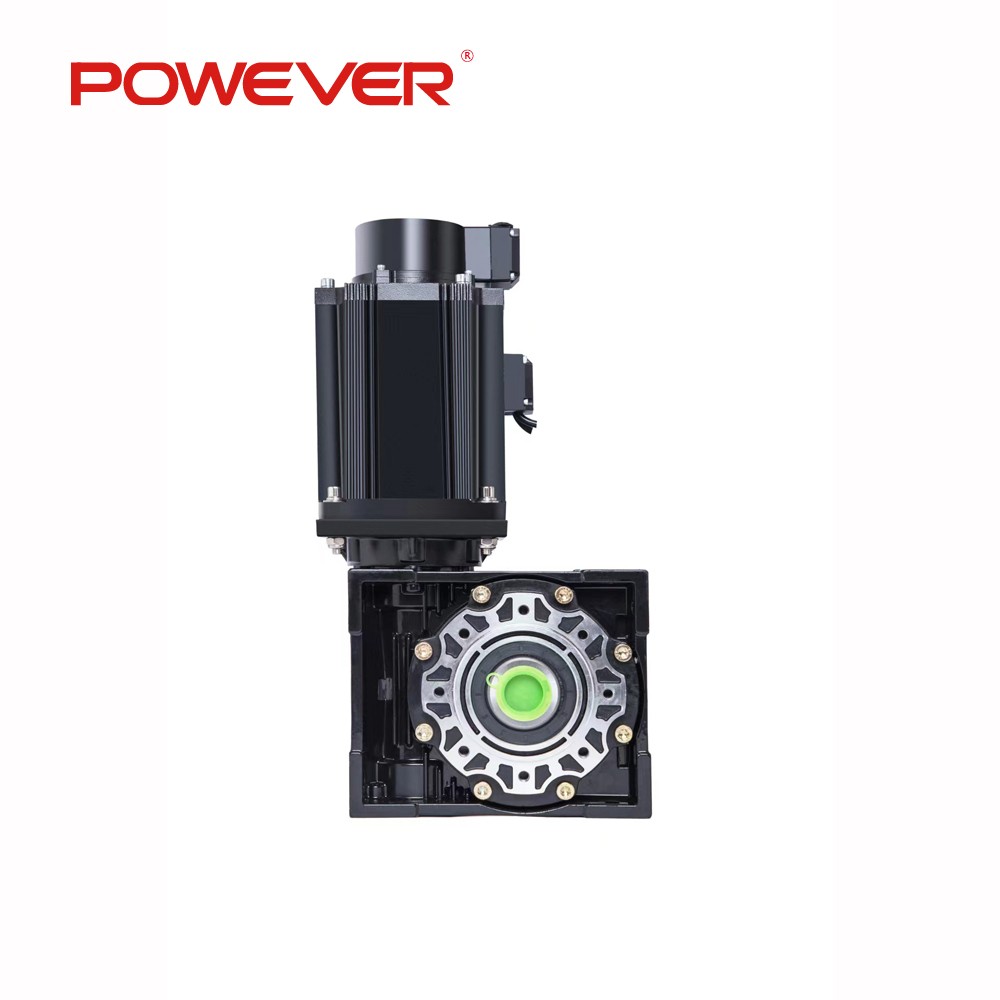

MOTOR |
|||||
|
RATIO |
1:15* |
1:25* |
1:40* |
||
|
MOTOR TYPE |
- - -Servo Motor- - - |
||||
|
WORKING SYSTEM |
S3 |
||||
|
POWER W |
- - -2200W- - - |
||||
|
POWER SUPPLY V |
- - -1- 220V±10%- - - |
||||
|
OUTPUT SPEED RPM |
33~133 |
20~80 |
12~50 |
||
|
OUTPUT TORQUE N.M |
157 |
262 |
420 |
||
|
DOOR OPENING SPEED M/S |
0.7~1.4 |
0.4~0.8 |
0.3~0.5 |
||
|
DOOR WEIGHT KG |
96~189 |
147~289 |
170~336 |
||
|
SLOW START AND SLOW STOP |
✓ |
||||
|
MOTOR IP LEVEL |
- - -IP65- - - |
||||
|
CABLE LENGTH m |
8* |
||||
|
WORKING ENVIRONMENT ℃ |
- - -- -10 ~ +50- - - |
||||
|

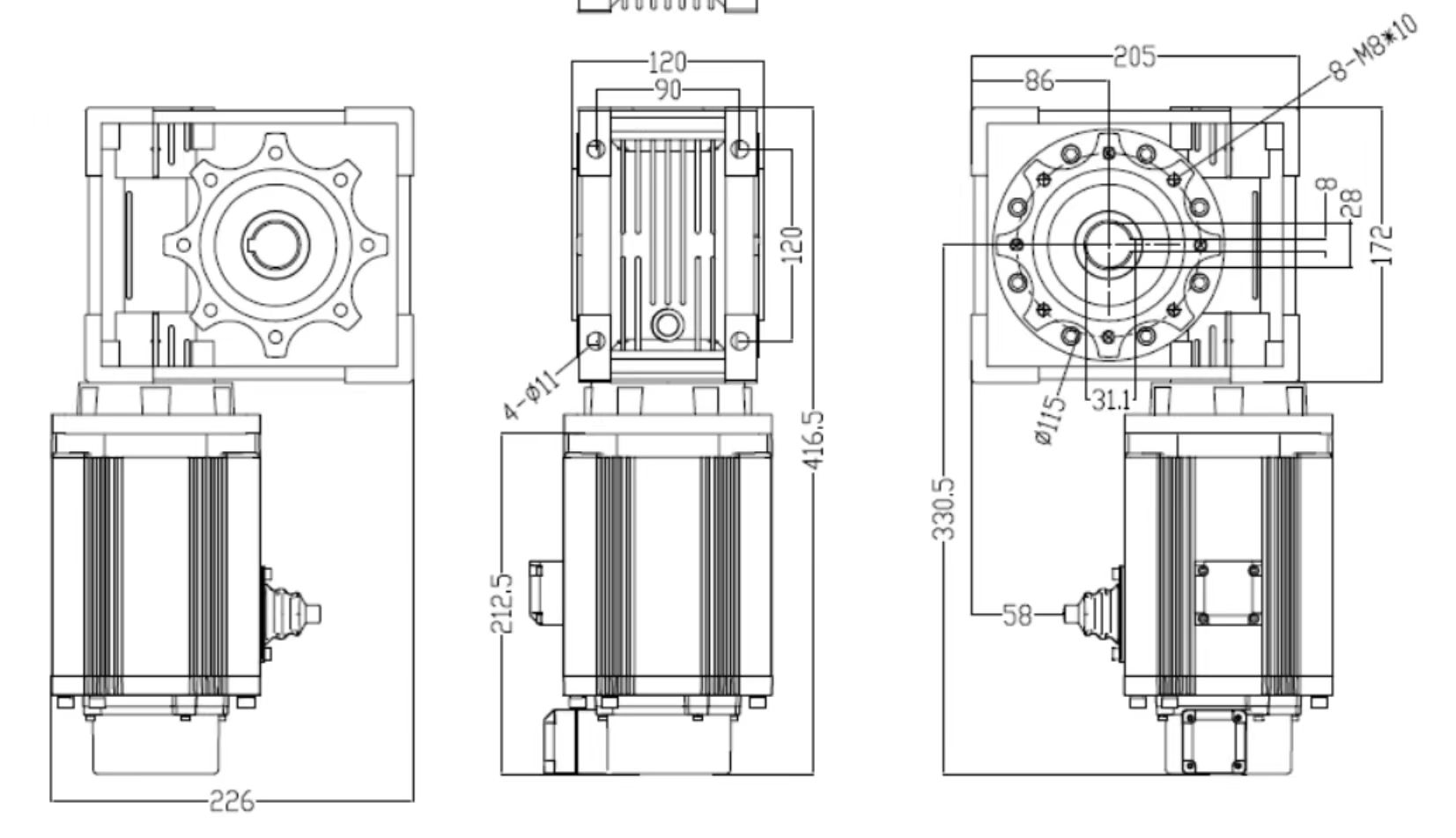

HOLLOW SHAFT MM |
28* |
||||
|
INCREMENTAL ENCODER |
✓ |
||||
|
ABSOLUTE ENCODER |
✓ |
||||
|
DOOR OPENING AND CLOSING SPEED |
- - -Adjustable- - - |
||||
|
SLOW START AND SLOW STOP |
✓ |
||||
|
RELAY OUTPUT |
2* |
||||
|
HANDLE |
- - -Option- - - |
||||
|
WEIGHT |
- - -19kg- - - |
||||
|
CE CERTIFICATION |
✓ |
||||
|

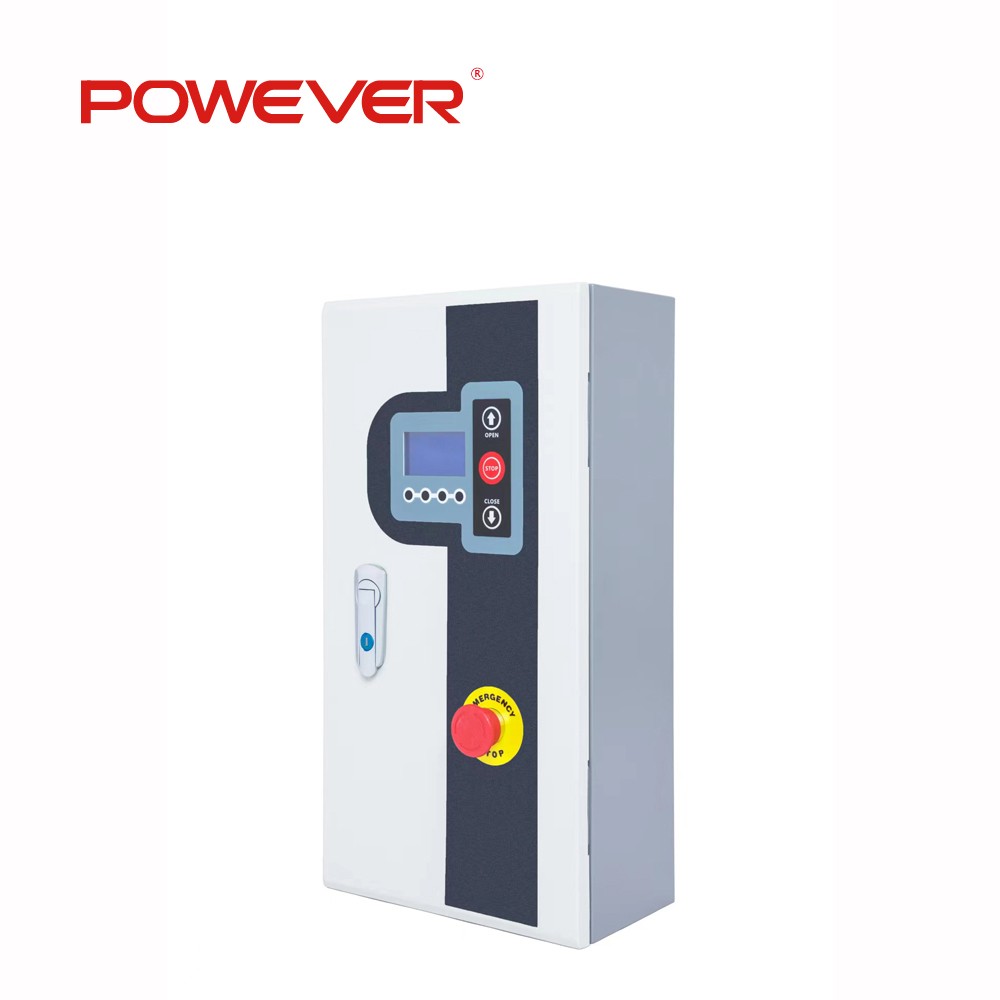

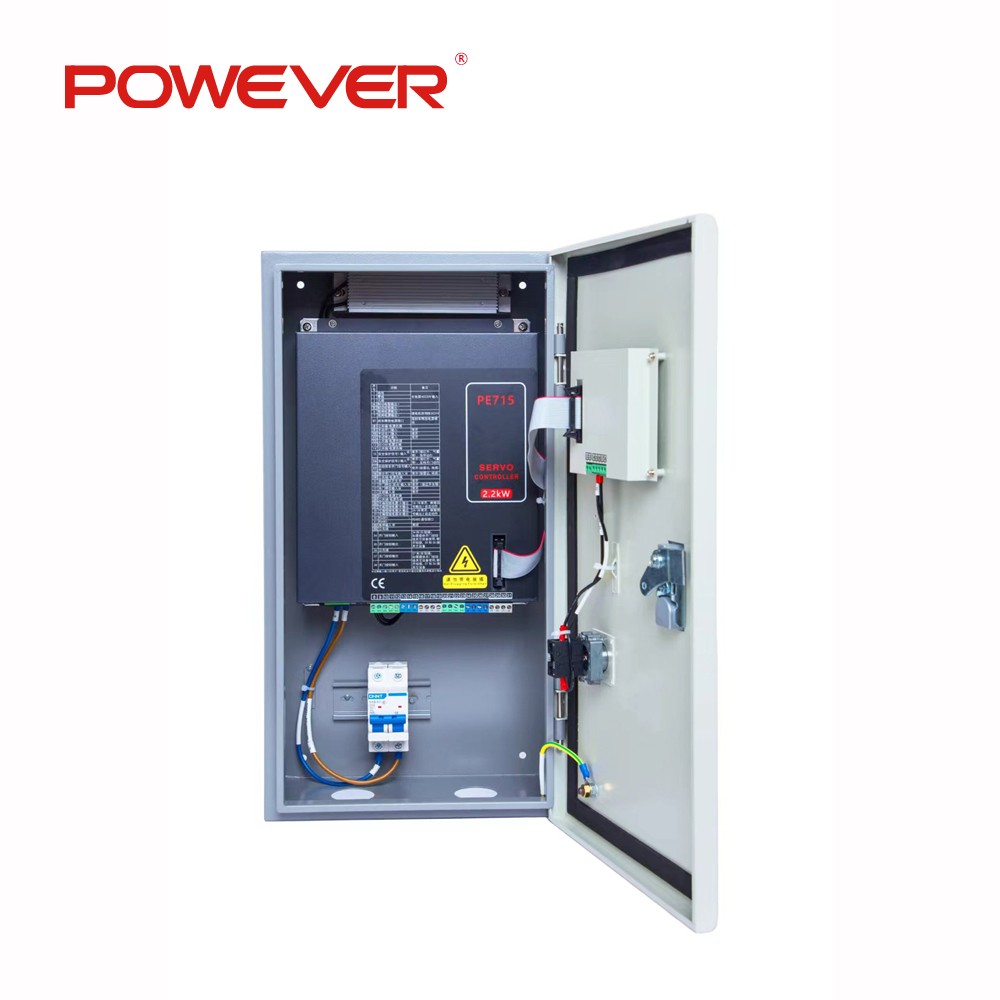

CONTROLLER |
|
|

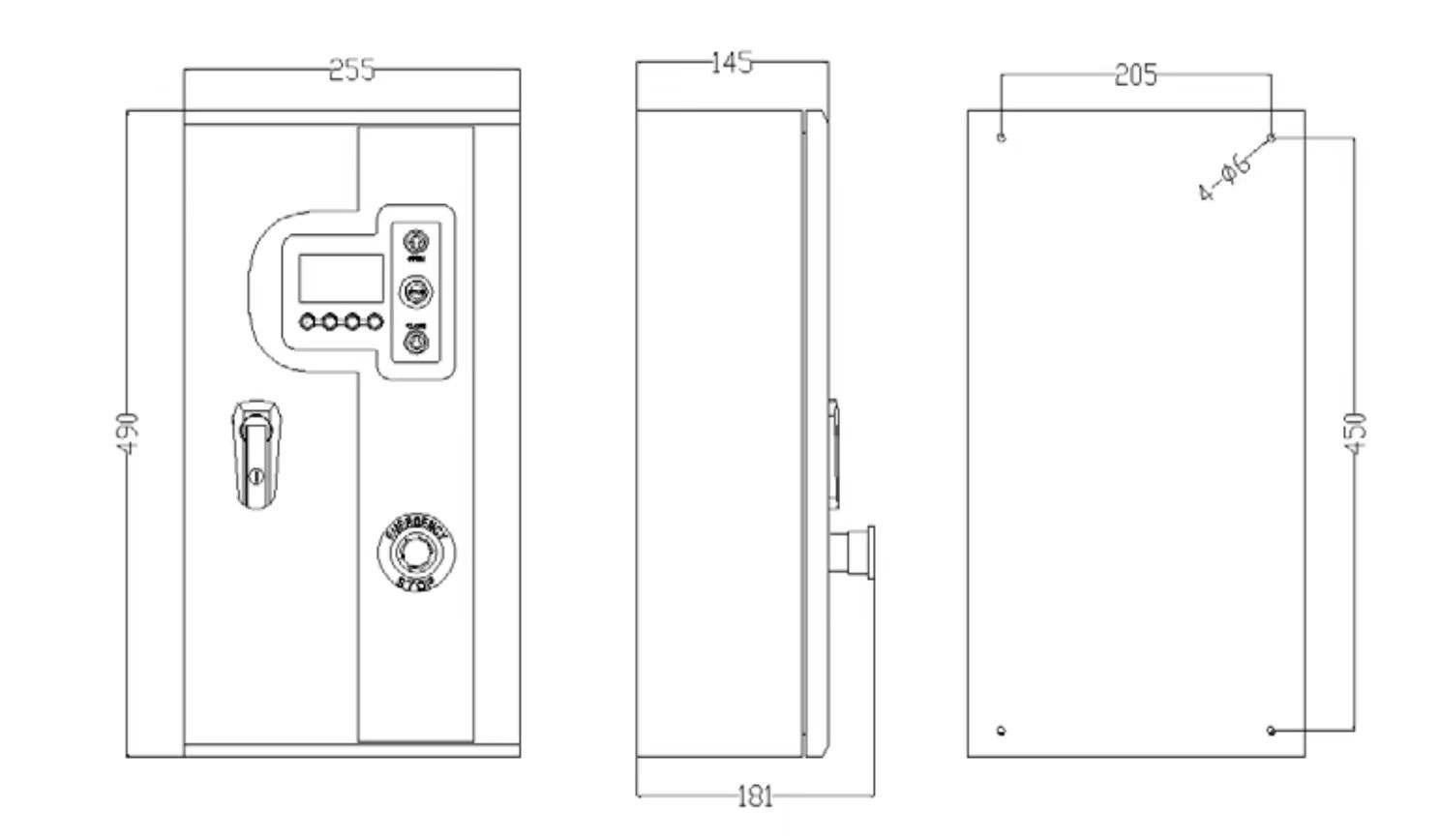

CONTROLLER DIMENSIONS MM |
490*255*181 |
|
DISPLAY |
4 Lines Text Display |
|
OPENING AND CLOSING SPEED SETTINGS |
✓ |
|
SOFT START AND SOFT STOP |
✓ |
|
OPENING AND CLOSING SLOWDOWN DISTRICT |
✓ |
|
AUTOMATIC CLOSING DELAY(SECONDS) |
1~240* |
|
PARTIAL OPENING HEIGHT (%) |
✓ |
|
OPERATION STATUS DISPLAY |
Current/Speed/Height ,Three modes |
|
ERROR REPORT |
✓ |
|
FAULT MEMORY |
✓ |
|
MAINTENANCE REMINDER |
✓ |
|
JOG MODE |
✓ |
|
MOTOR REVERSE RUNNING |
✓ |
|
NC/NO SWITCHING |
✓ |
|
ANTI-FROZEN SHAKING |
✓ |
|
TORQUE ADJUSTMENT |
✓ |
|
OPENING DELAY |
✓ |
|
AUTOMATIC TEST |
✓ |
|
MAINTENANCE INFORMATION |
✓ |
|
AIR SWITCH |
✓ |
|
OPEN/CLOSE/STOP INPUT |
✓ |
|
RS485 |
✓ |
|
SAFETY SIGNAL 1 INPUT |
✓ |
|
SAFETY SIGNAL 2 INPUT |
✓ |
|
PARTIAL OPENING SIGNAL INPUT |
✓ |
|
AUTOMATIC FULLY OPENING SIGNAL INPUT |
✓ |
|
MANUAL/AUTOMATIC SWITCHING INPUT |
✓ |
|
INTERLOCK INPUT |
✓ |
|
PROGRAMMABLE RELAY OUTPUT |
✓ |
|
DC24V OUTPUT |
✓ |
|
WEIGHT |
8.0kg |
We've achieved precise control over position, speed, and torque with a fully closed-loop servo system. Our high-precision
electronic limits ensure there's no deviation during long-term operation. Also eliminating the need for climbing to set limits and ensuring operator safety.
2. Stable
Our integrated design includes EMC electromagnetic compatibility features. We continuously monitor motor output data in real-time, allowing us to assess the status of balance systems like torsion springs and tension springs, as well as detect any jamming point.
Our system offers adjustable speeds for flexible operation. The lifting door system can reach a rated output speed of 133RMP, with a maximum lifting speed of 1.95M/s.
The system operates smoothly without any shaking, minimizing the impact on its mechanical structure and significantly extending its service life.
5. Security
Our system is equipped with various protection methods, including overvoltage, undervoltage, overcurrent, and short circuit protection. With an emergency signal response time of under 30 milliseconds, we ensure the safety of both people and objects.
Logistic Center Workshop Refrigeration Airport
