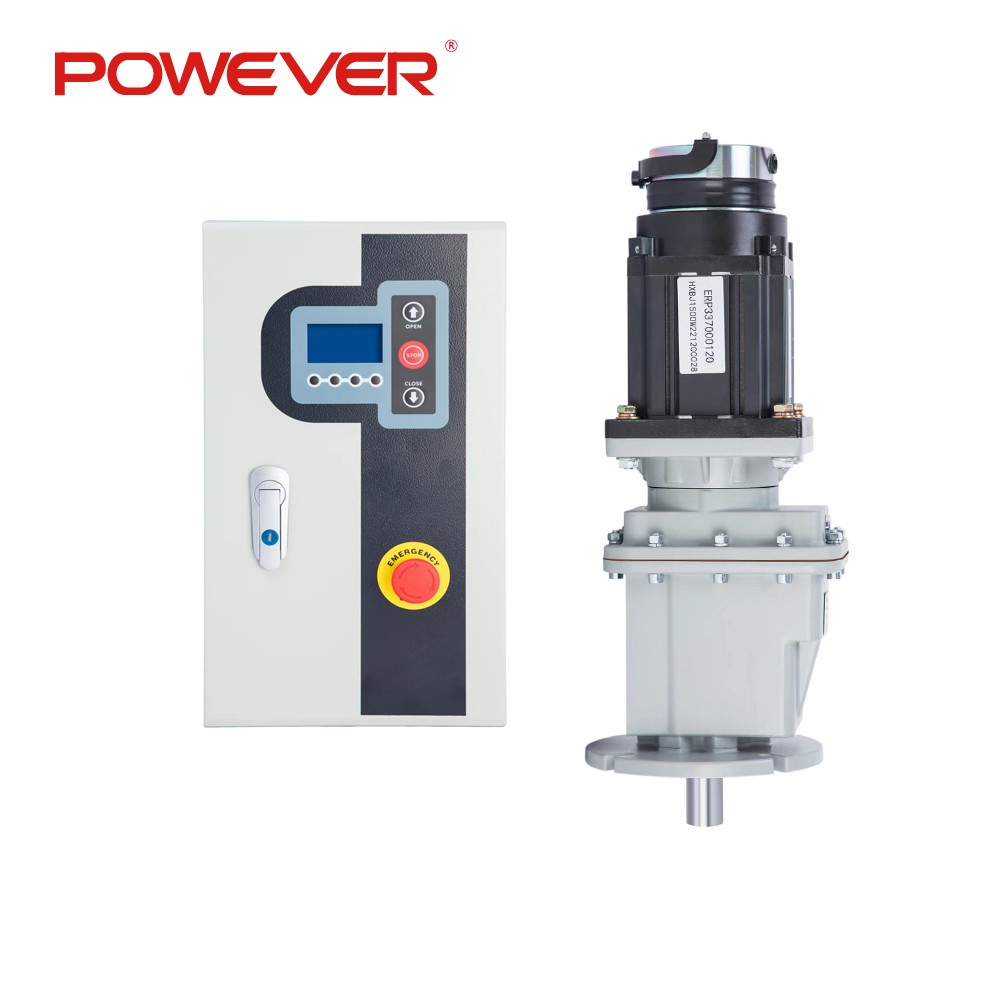

A1 Series PE515 1500W for High Speed Spiral Door
- Product Item : PE515
- Category： A1 Series
Spiral High-Speed Doors are specifically designed for high-frequency access requirements, combining efficiency with safety. Their rapid opening/closing function significantly improves traffic flow in factories, logistics parks, and parking lots while effectively isolating work environments. Thanks to their compact structure and superior sealing performance, these doors are also ideal for demanding environments such as airports and laboratories where dustproof and explosion-proof standards are critical.
POWEVER utilizes an advanced servo control system to deliver exceptional performance for your spiral doors:
- Ultra-Fast Response: 30ms reaction time for instant operation
- Precision Control: High-precision servo drive technology ensures smooth, error-free movement
- Long-Lasting Durability: Soft start/stop function significantly reduces mechanical wear
- Smart Integration: Supports seamless multi-device synchronization to enhance overall system efficiency

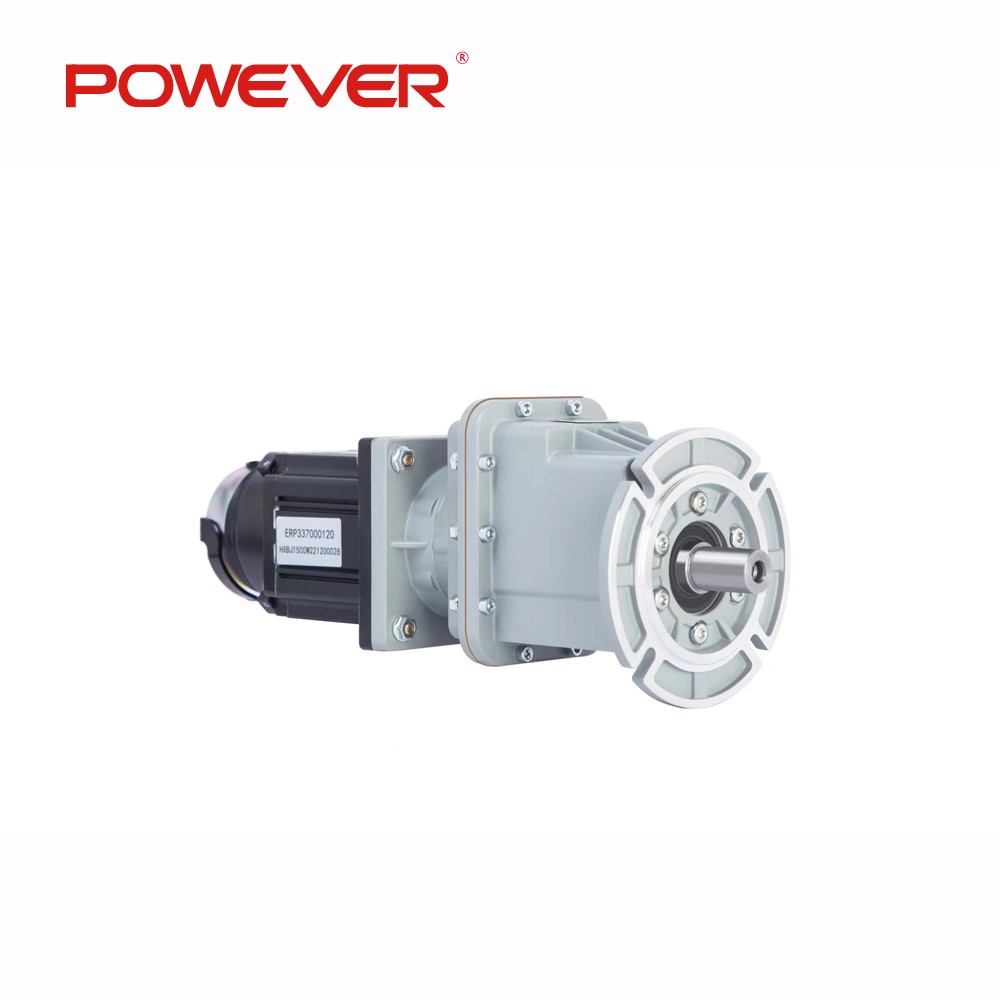

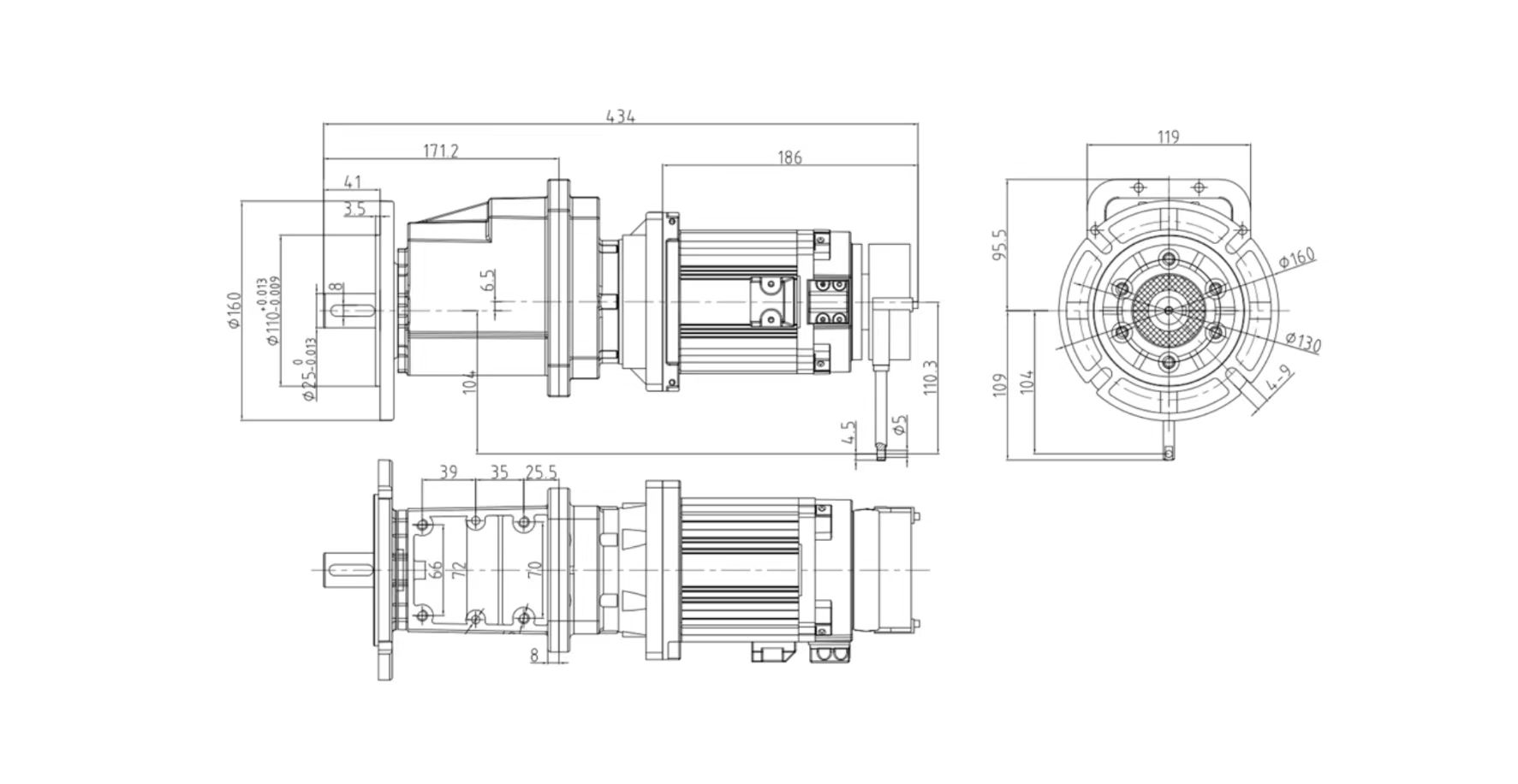

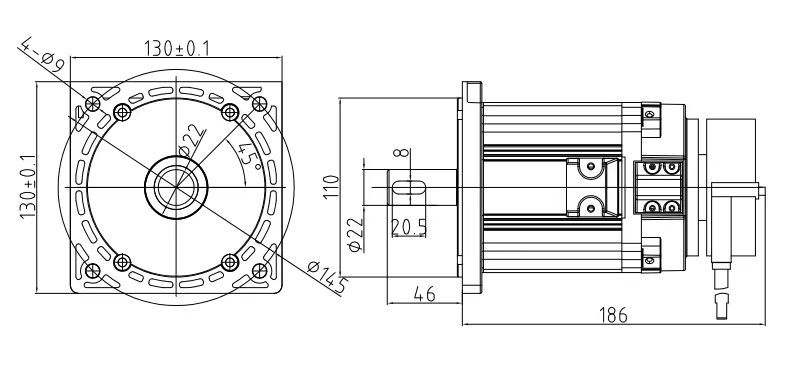

MOTOR
RATIO
1:15*
1:20*
1:25*
MOTOR TYPE
- - -Servo Motor- - -
WORKING SYSTEM
S3
POWER W
- - -1500W- - -
POWER SUPPLY V
- - -1- 220V±10%- - -
OUTPUT SPEED RPM
33~166
25~125
20~100
OUTPUT TORQUE N.M
85.8
114
143
MAX DOOR AREA(φ140 roller) ㎡
19
22
25
SLOW START AND SLOW STOP
✓
MOTOR IP LEVEL
- - -IP54- - -
CABLE LENGTH m
5*
WORKING ENVIRONMENT ℃
- - --10~+50- - -
HOLLOW SHAFT MM
25*
DIGITAL LIMIT
✓
PROXIMITY SWITCH
Compatible
DOOR OPENING AND CLOSING SPEED
- - -Adjustable- - -
SLOW START AND SLOW STOP
✓
RELAY OUTPUT
2
HANDLE
- - -Option- - -
WEIGHT
- - -13kg- - -
CE CERTIFICATION
✓

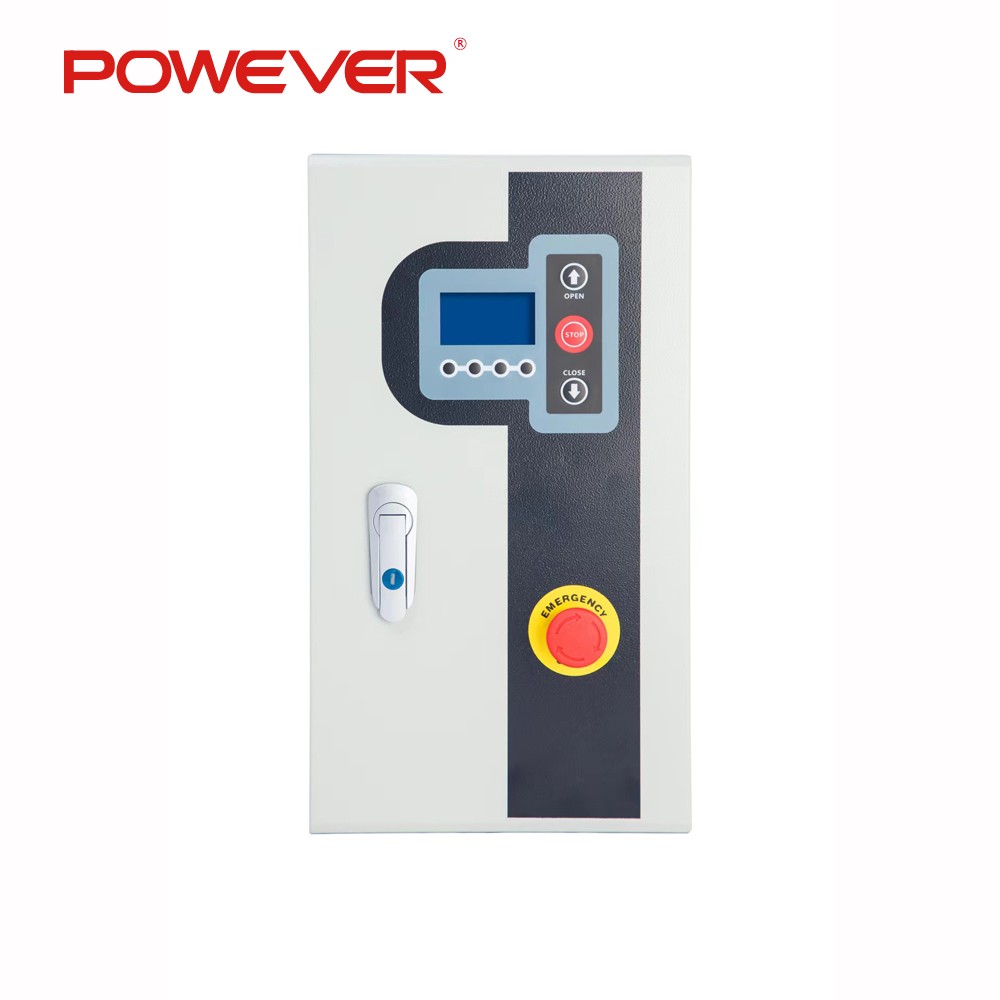

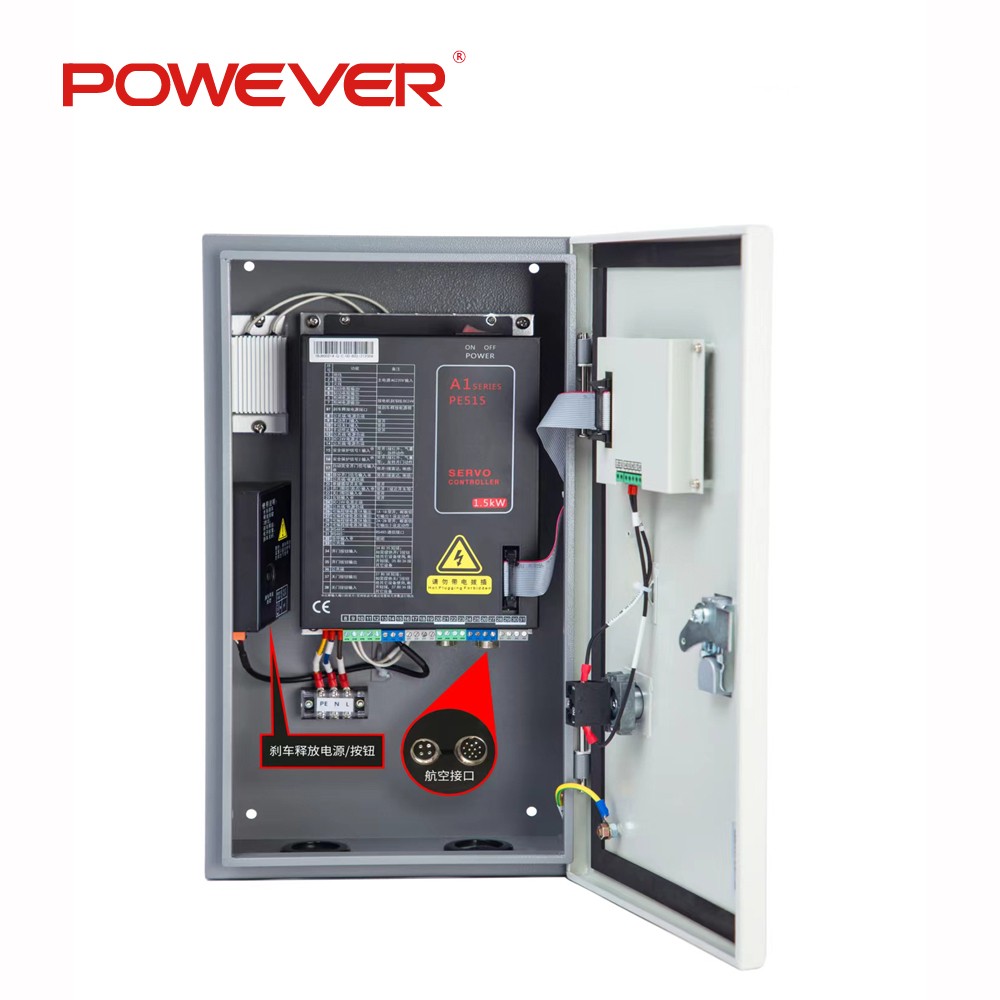

CONTROLLER

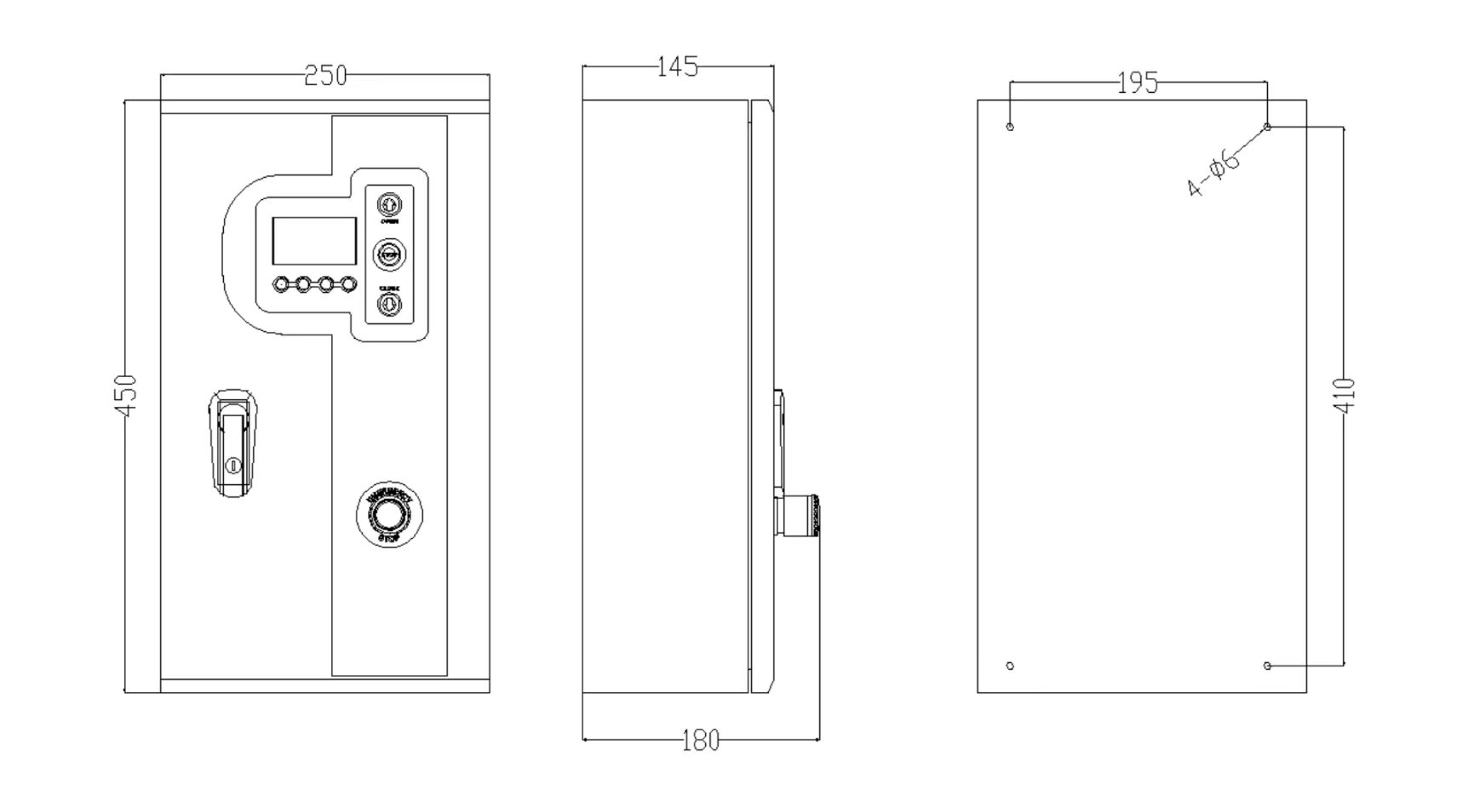

CONTROLLER DIMENSIONS MM
450*250*148
DISPLAY
4 Lines Text Display
OPENING AND CLOSING SPEED SETTINGS
✓
SOFT START AND SOFT STOP
✓
OPENING AND CLOSING SLOWDOWN DISTRICT
✓
AUTOMATIC CLOSING DELAY(SECONDS)
1~240*
PARTIAL OPENING HEIGHT (%)
✓
OPERATION STATUS DISPLAY
Current/Speed/Height ,Three modes
ERROR REPORT
✓
FAULT MEMORY
✓
MAINTENANCE REMINDER
✓
JOG MODE
✓
MOTOR REVERSE RUNNING
✓
NC/NO SWITCHING
✓
ANTI-FROZEN SHAKING
✓
TORQUE ADJUSTMENT
✓
OPENING DELAY
✓
AUTOMATIC TEST
✓
MAINTENANCE INFORMATION
✓
AIR SWITCH
×
OPEN/CLOSE/STOP INPUT
✓
RS485
✓
SAFETY SIGNAL 1 INPUT
✓
SAFETY SIGNAL 2 INPUT
✓
PARTIAL OPENING SIGNAL INPUT
✓
AUTOMATIC FULLY OPENING SIGNAL INPUT
✓
MANUAL/AUTOMATIC SWITCHING INPUT
✓
INTERLOCK INPUT
✓
PROGRAMMABLE RELAY OUTPUT
✓
DC24V OUTPUT
✓
WEIGHT
6.5kg
We've achieved precise control over position, speed, and torque with a fully closed-loop servo system. Our high-precision
electronic limits ensure there's no deviation during long-term operation. Also eliminating the need for climbing to set limits and ensuring operator safety.
2. Stable
Our integrated design includes EMC electromagnetic compatibility features. We continuously monitor motor output data in real-time, allowing us to assess the status of balance systems like torsion springs and tension springs, as well as detect any jamming point.
Our system offers adjustable speeds for flexible operation. The lifting door system can reach a rated output speed of 133RMP, with a maximum lifting speed of 1.95M/s.
The system operates smoothly without any shaking, minimizing the impact on its mechanical structure and significantly extending its service life.
5. Security
Our system is equipped with various protection methods, including overvoltage, undervoltage, overcurrent, and short circuit protection. With an emergency signal response time of under 30 milliseconds, we ensure the safety of both people and objects.
Logistic Center Workshop Refrigeration Airport
