A4 Pro 50Nm High-Speed Door Operator (250rpm)
Product Item : A4 Pro 50Nm
Category：A4 Pro
Overview

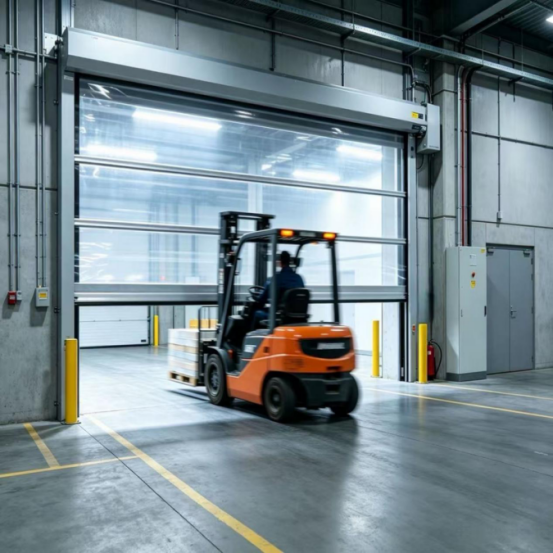

The A4 Pro high speed door servo motor is a high-performance drive system engineered for demanding high speed door applications. Equipped with enhanced torque output, precise positioning technology, and intelligent control functions, it delivers stable and efficient operation under high-frequency usage. Its durable structure and advanced safety features make it suitable for logistics centers, industrial facilities, cold storage areas, and large high speed door systems.
Technical Specifications

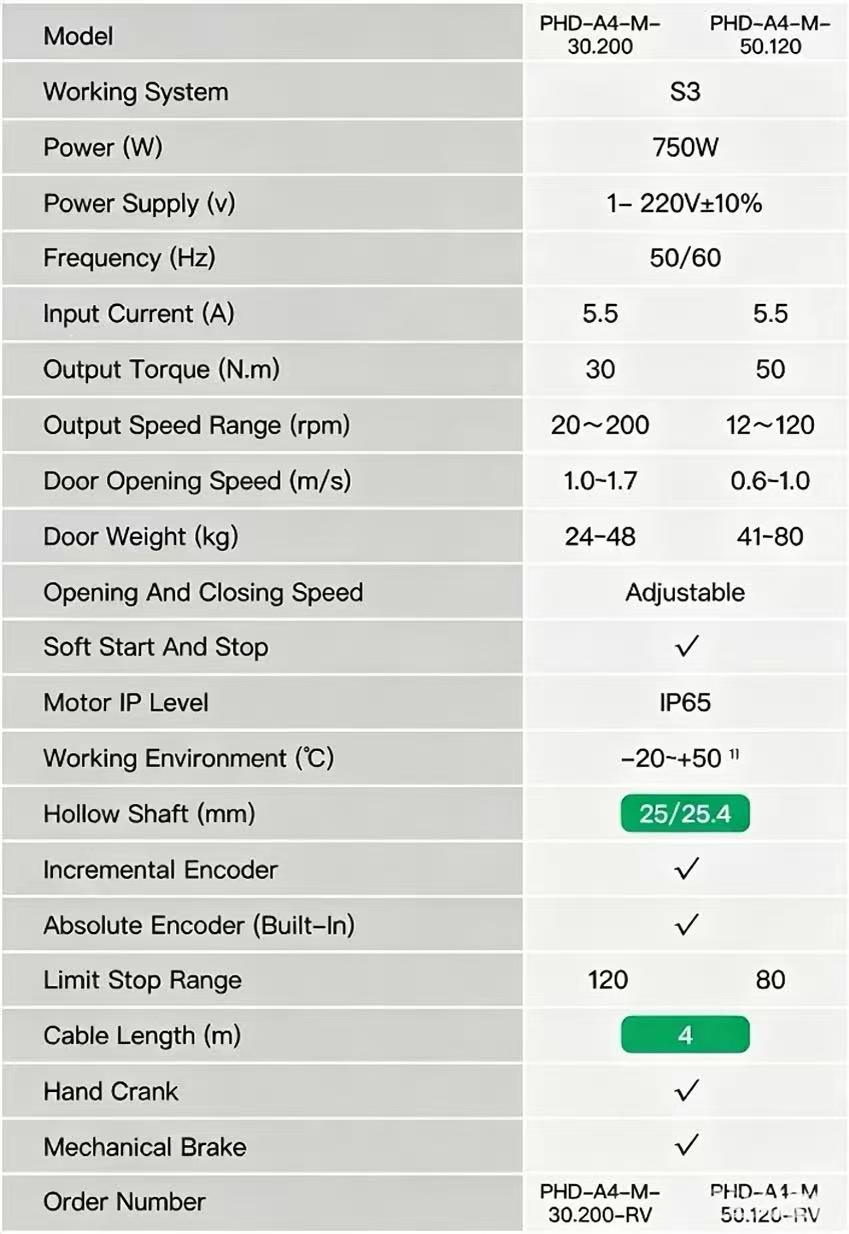

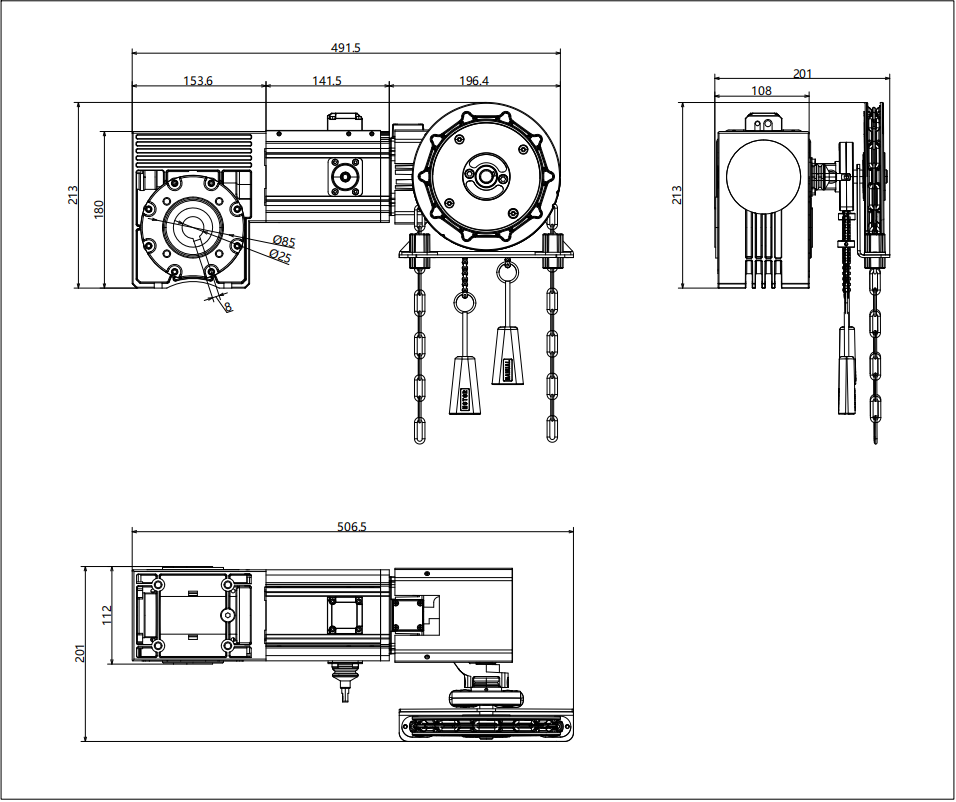

Motor

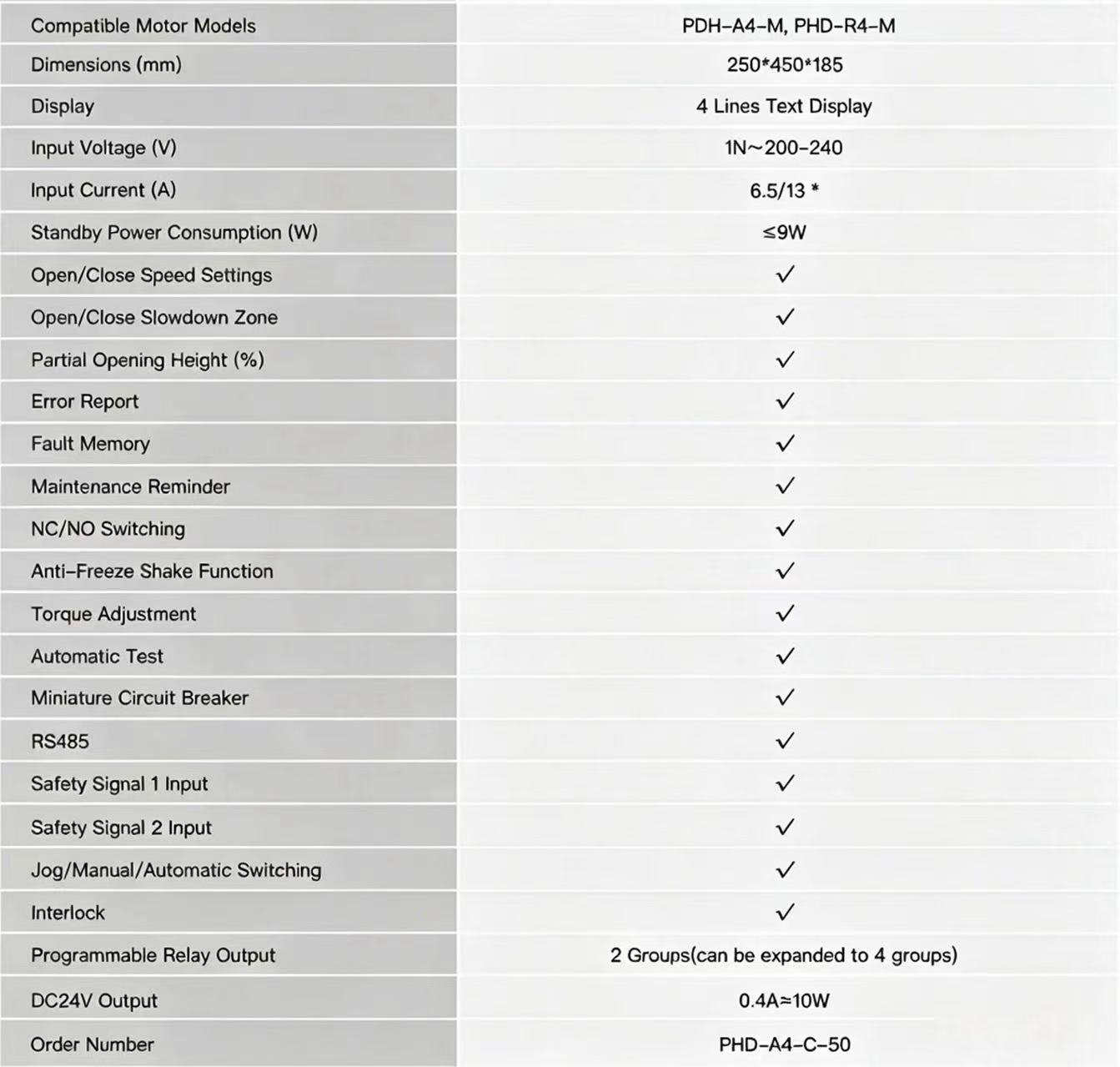

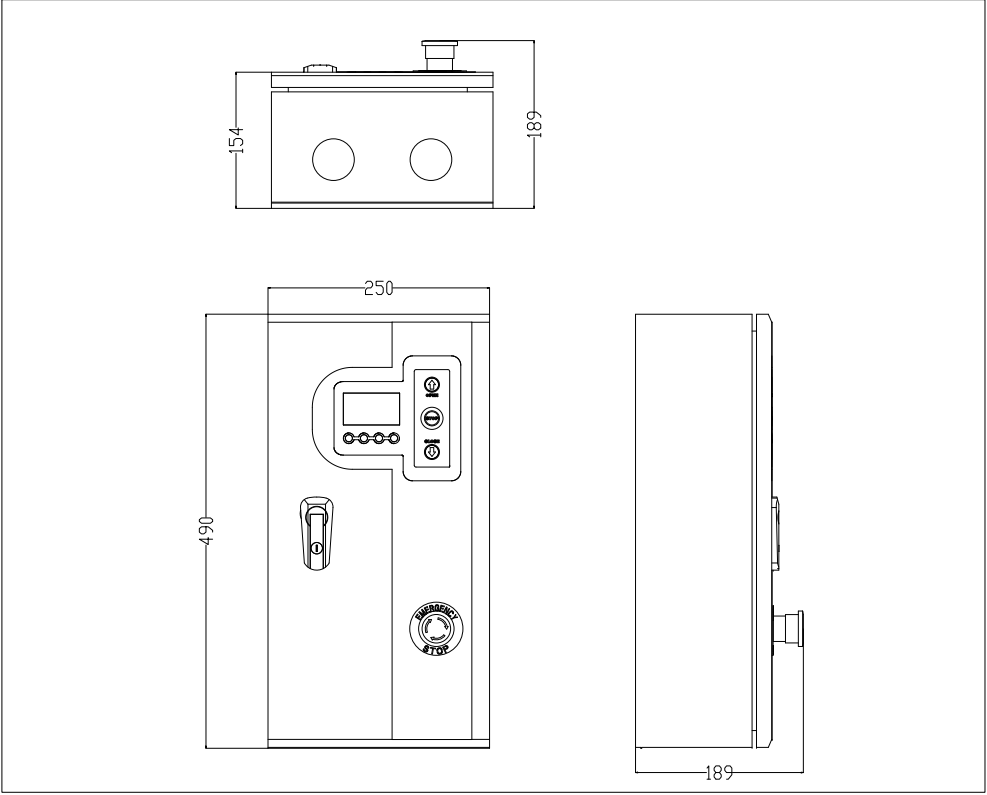

Controller

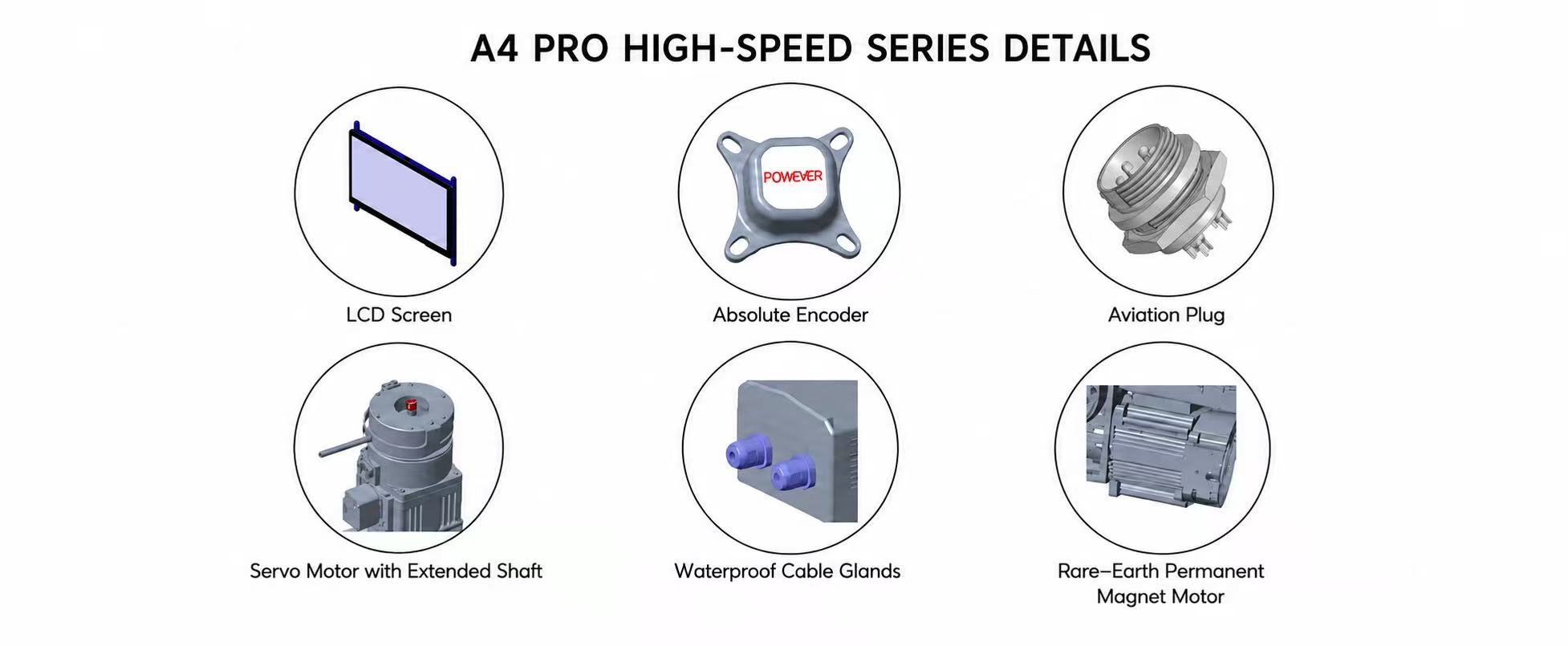

Features & Details
Key Benefits
-
Security
The A4 Pro is equipped with enhanced electrical protection, including overvoltage, undervoltage, overcurrent, and short-circuit protection. With an emergency signal response time of under 30 milliseconds, it delivers top-tier safety for heavy-duty applications. -
Efficient
Optimized for high-frequency and heavy-load use, the system offers adjustable speeds for flexible operation. The lifting door system achieves a rated output speed of 133RPM, with a maximum lifting speed of 1.95m/s, ensuring high productivity. -
Accurate
A fully closed-loop servo system provides precise control over position, speed, and torque. High-precision electronic limits ensure zero deviation, even under heavy load conditions. -
Less Impact
Ultra-smooth operation with zero shaking minimizes mechanical stress on the door structure, torsion springs, and heavy-duty hardware, significantly extending service life. -
Stable
Integrated EMC electromagnetic compatibility features ensure reliable performance in demanding industrial environments. Continuous real-time monitoring of motor output allows assessment of balance system health and early detection of any jamming points.
