Fire Alarm Connection & Settings Adjustment for Sectional Door Motor

Where we connect the fire alarm signal NC?
What parameters and we connect the wires pair NC of the alarm system？

1. Connection:

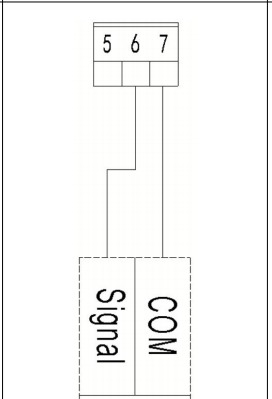

   • Connect the fire alarm the same way as the pedestrian door.

2. Settings Configuration:

• Go to: SET → 6668 → Parameter → 15 Input Port Set → 1. General Port Set→ Change "Pedestrian Door" to "Fire Alarm"

Editor/Contact Person: Lea
