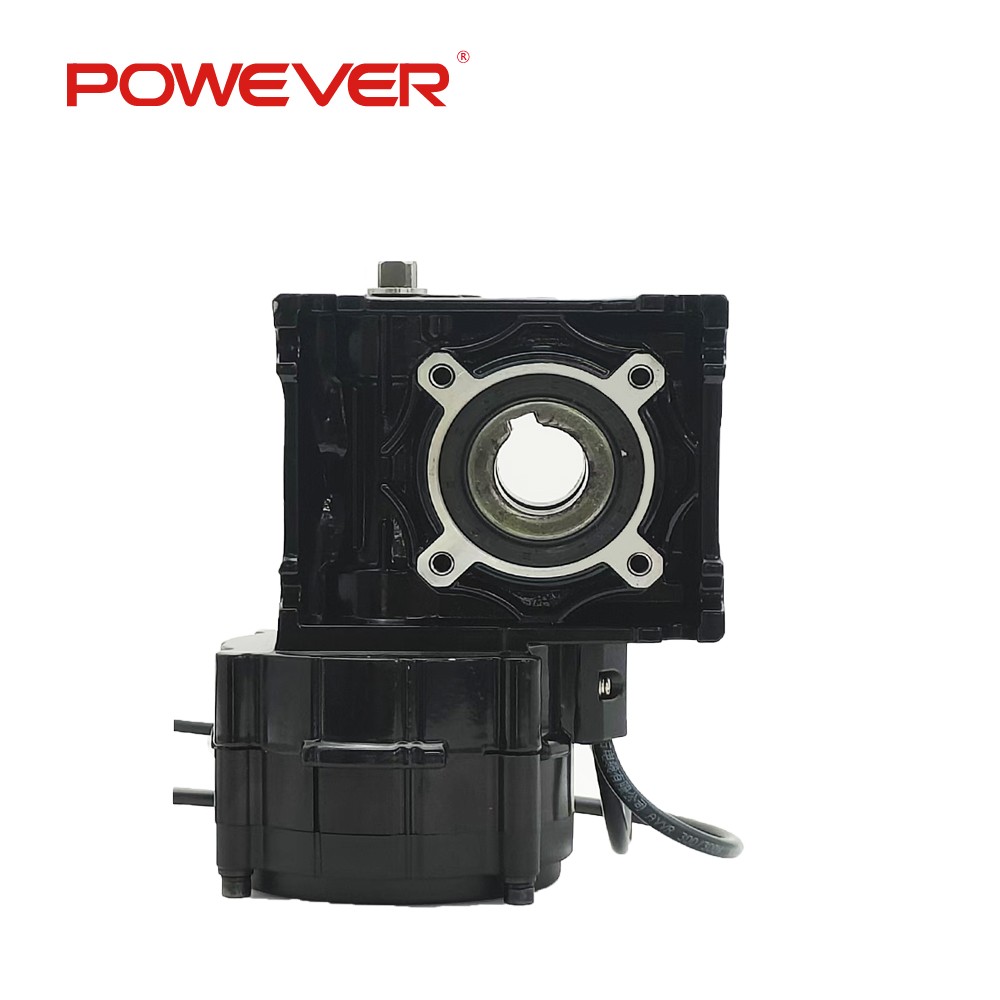

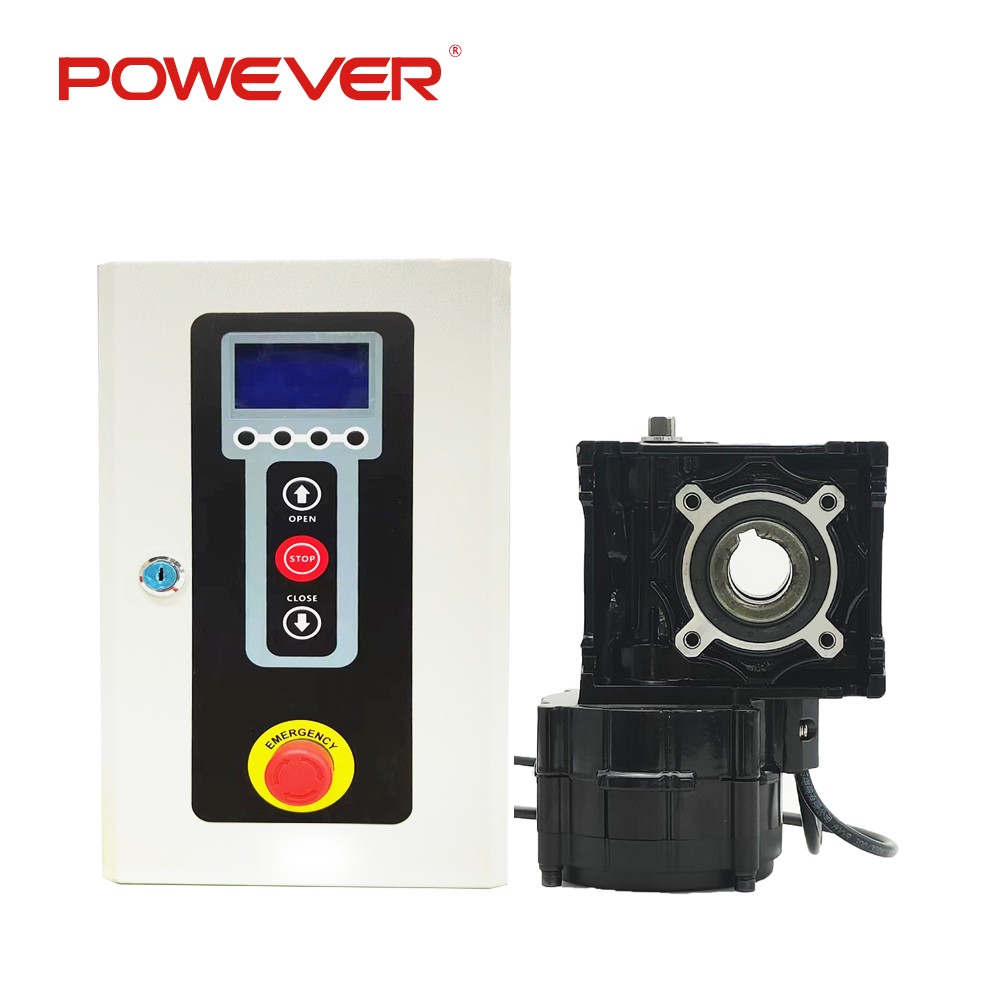

A0 Series PE201 750W for Flexible High Speed Door
- Product Item : PE201
- Category： A0 Series
In the increasingly diversified industrial door sector, market segmentation has become particularly crucial.
For small-area rapid doors, POWEVER has introduced the A0 series, featuring soft-start and soft-stop functionality,
as well as quick opening and closing, significantly reducing energy consumption.
Moreover, users can enjoy the benefits of servo technology at a more affordable price.
POWEVER utilizes an advanced servo control system to deliver exceptional performance for your spiral doors:
- Ultra-Fast Response: 30ms reaction time for instant operation
- Precision Control: High-precision servo drive technology ensures smooth, error-free movement
- Long-Lasting Durability: Soft start/stop function significantly reduces mechanical wear
- Smart Integration: Supports seamless multi-device synchronization to enhance overall system efficiency

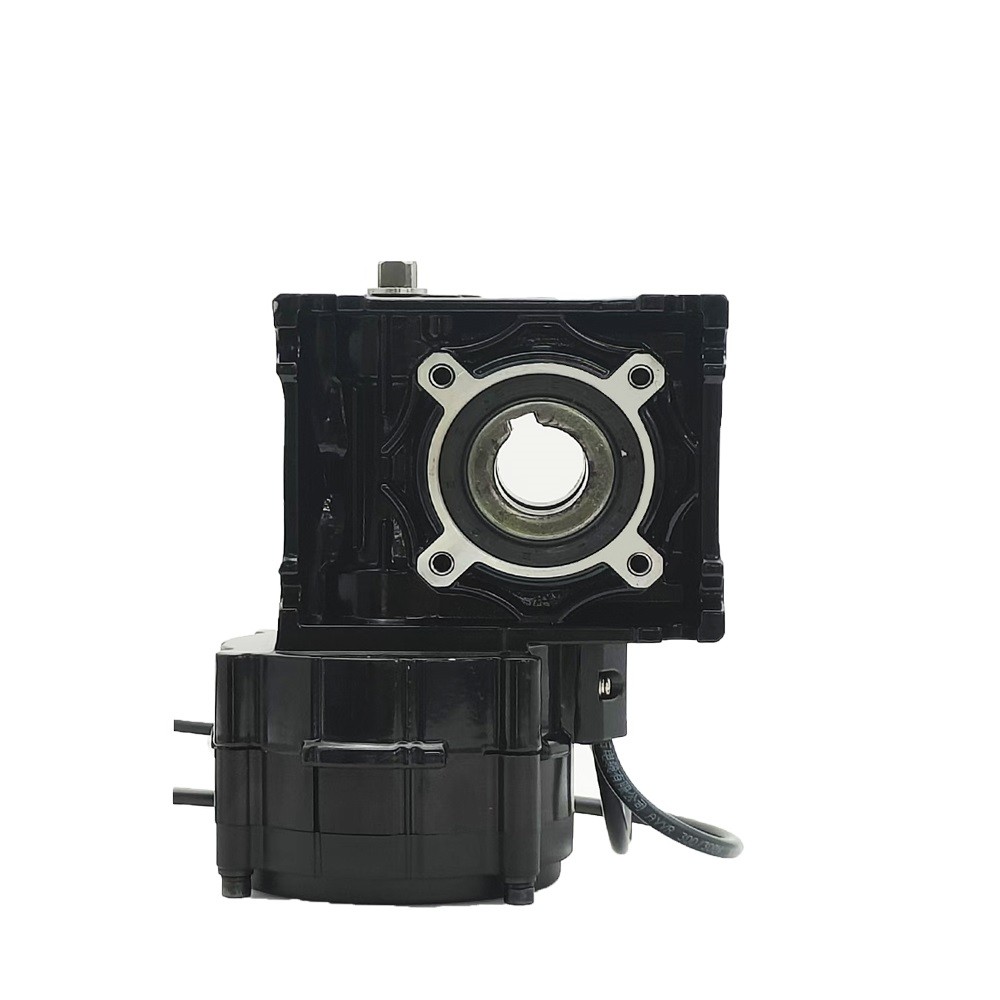

MOTOR
RATIO
1:27
MOTOR TYPE
- - -Servo Motor- - -
WORKING SYSTEM
S3
POWER W
- - -750W- - -
POWER SUPPLY V
- - -1- 220V±10%- - -
OUTPUT SPEED RPM
18~111
OUTPUT TORQUE N.M
64
DOOR OPENING SPEED M/S
0.58~1.1
DOOR WEIGHT KG
32~64
SLOW START AND SLOW STOP
✓
MOTOR IP LEVEL
- - -54- - -
CABLE LEMGTH m
4
WORKING ENVIRONMENT ℃
- - --10~+50- - -
HOLLOW SHAFT MM
25
INCREMENTAL ENCODER
✓
ABSOLUTE ENCODER
✓
DOOR OPENING AND CLOSING SPEED
- - -Adjustable- - -
SLOW START AND SLOW STOP
✓
RELAY OUTPUT
2*
BRAKE
Recuder Self-locking
HANDLE
- - -Option- - -
WEIGHT
- - -8.5kg- - -
CE CERTIFICATION
✓

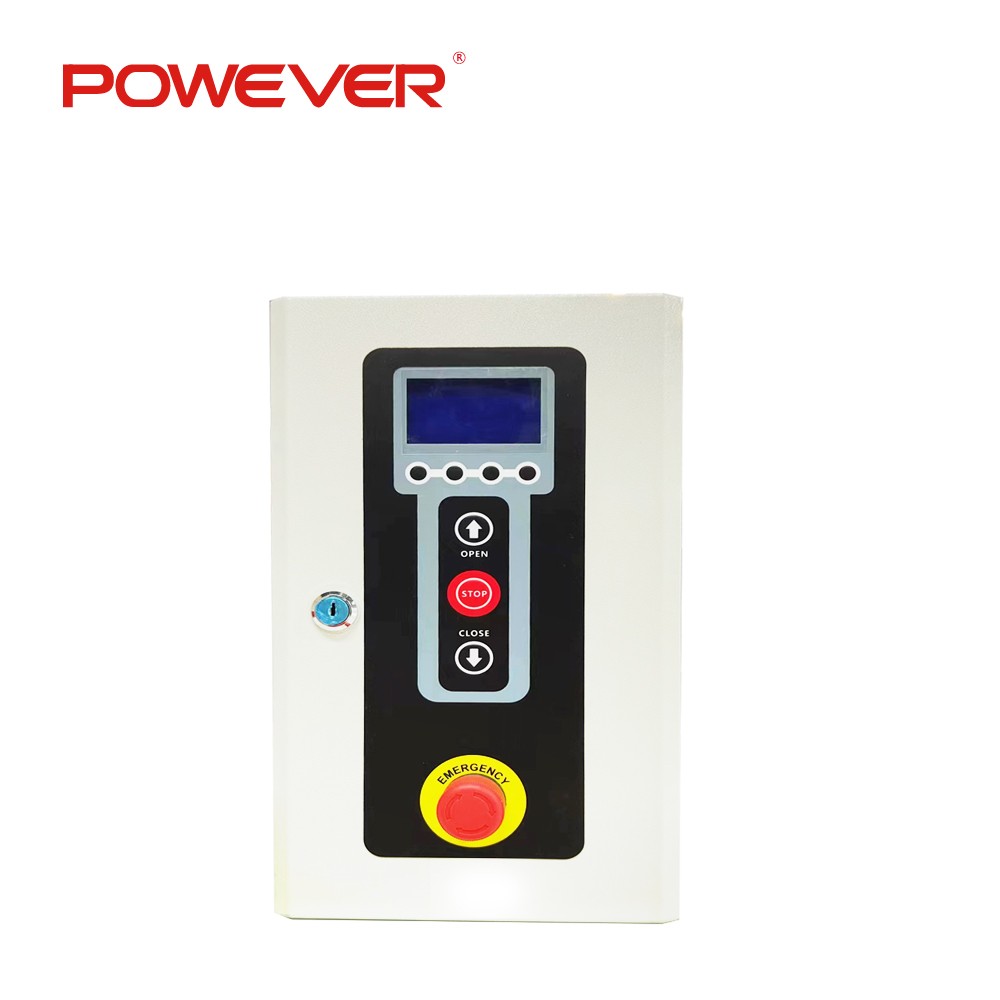

CONTROLLER
CONTROLLER DIMENSIONS MM
340*195*162
DISPLAY
4 Lines Text Display
OPENING AND CLOSING SPEED SETTINGS
✓
SOFT START AND SOFT STOP
✓
OPENING AND CLOSING SLOWDOWN DISTRICT
✓
AUTOMATIC CLOSING DELAY(SECONDS)
1~240*
PARTIAL OPENING HEIGHT (%)
✓
OPERATION STATUS DISPLAY
Current/Speed/Height ,Three modes
ERROR REPORT
✓
FAULT MEMORY
✓
MAINTENANCE REMINDER
✓
JOG MODE
✓
MOTOR REVERSE RUNNING
✓
NC/NO SWITCHING
✓
ANTI-FROZEN SHAKING
✓
TORQUE ADJUSTMENT
✓
OPENING DELAY
✓
AUTOMATIC TEST
✓
MAINTENANCE INFORMATION
✓
AIR SWITCH
×
OPEN/CLOSE/STOP INPUT
✓
RS485
✓
SAFETY SIGNAL 1 INPUT
✓
SAFETY SIGNAL 2 INPUT
✓
PARTIAL OPENING SIGNAL INPUT
✓
AUTOMATIC FULLY OPENING SIGNAL INPUT
✓
MANUAL/AUTOMATIC SWITCHING INPUT
✓
INTERLOCK INPUT
✓
PROGRAMMABLE RELAY OUTPUT
✓
DC24V OUTPUT
✓
WEIGHT
3.0kg
We've achieved precise control over position, speed, and torque with a fully closed-loop servo system. Our high-precision
electronic limits ensure there's no deviation during long-term operation. Also eliminating the need for climbing to set limits and ensuring operator safety.
2. Stable
Our integrated design includes EMC electromagnetic compatibility features. We continuously monitor motor output data in real-time, allowing us to assess the status of balance systems like torsion springs and tension springs, as well as detect any jamming point.
Our system offers adjustable speeds for flexible operation. The lifting door system can reach a rated output speed of 133RMP, with a maximum lifting speed of 1.95M/s.
The system operates smoothly without any shaking, minimizing the impact on its mechanical structure and significantly extending its service life.
5. Security
Our system is equipped with various protection methods, including overvoltage, undervoltage, overcurrent, and short circuit protection. With an emergency signal response time of under 30 milliseconds, we ensure the safety of both people and objects.
Logistic Center Workshop Refrigeration Airport
