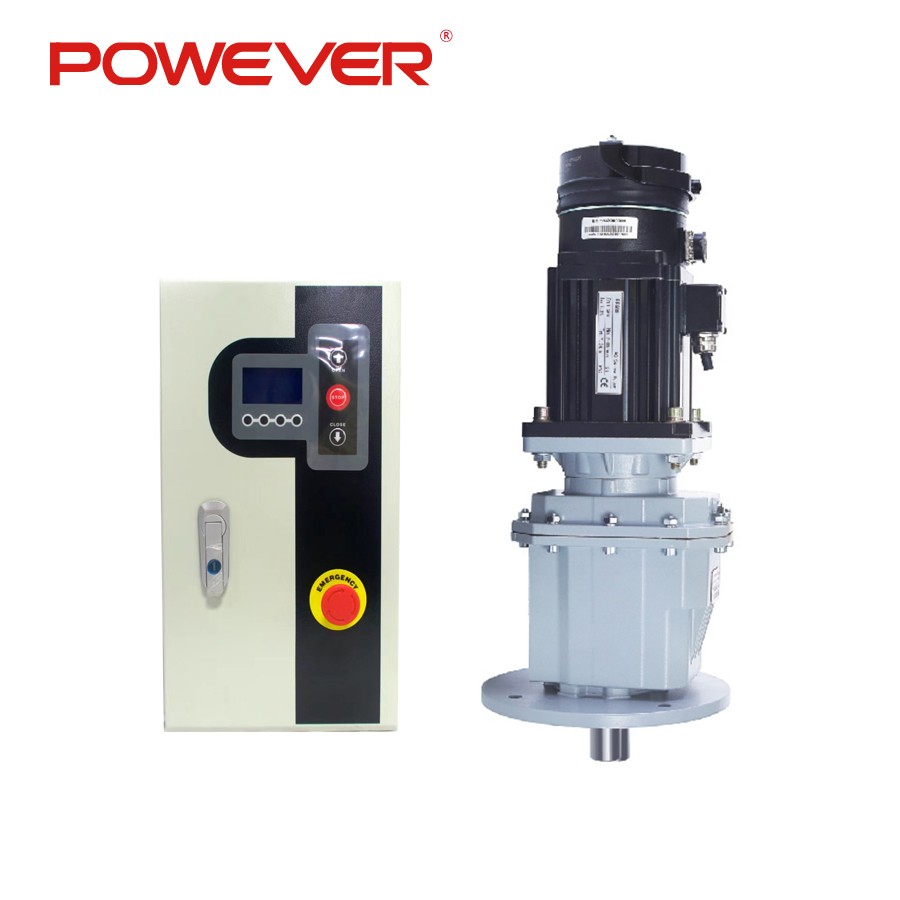

A4 Series PE500 1500W for High Speed Spiral Door
- Product Item : PE500
- Category： A4 Series
The A4 motor features a maximum speed of 2000 RPM, which can increase up to 2500 RPM in low-temperature cold storage environments. The door operates at a maximum speed of 1.95 m/s, ensuring exceptional efficiency.
The A4 series fast door is highly responsive, capable of opening from 0 to 1.9 m/s in just 500 milliseconds. Speed adjustments are easily customizable within this range, and smooth slow starts and stops can be configured to reduce wear and tear on the entire system, enhancing durability.
Equipped with high-precision encoders and utilizing closed-loop vector control algorithms, the system accurately monitors and controls speed, torque, and position, ensuring smooth and precise door operation. Even during acceleration, it prevents abrupt impacts, significantly extending the lifespan of the door.
The waterproof and dustproof aviation plugs ensure stable, reliable connections. Designed to withstand vibration, temperature fluctuations, and other environmental factors, they maintain consistent performance. Additionally, specially shaped sockets and pins prevent incorrect connections.
Recommended Applications:
- Loading and unloading docks
- Warehouses and distribution centers
- Manufacturing facilities
- Military installations
- Refrigeration, energy management, and LEED-certified buildings

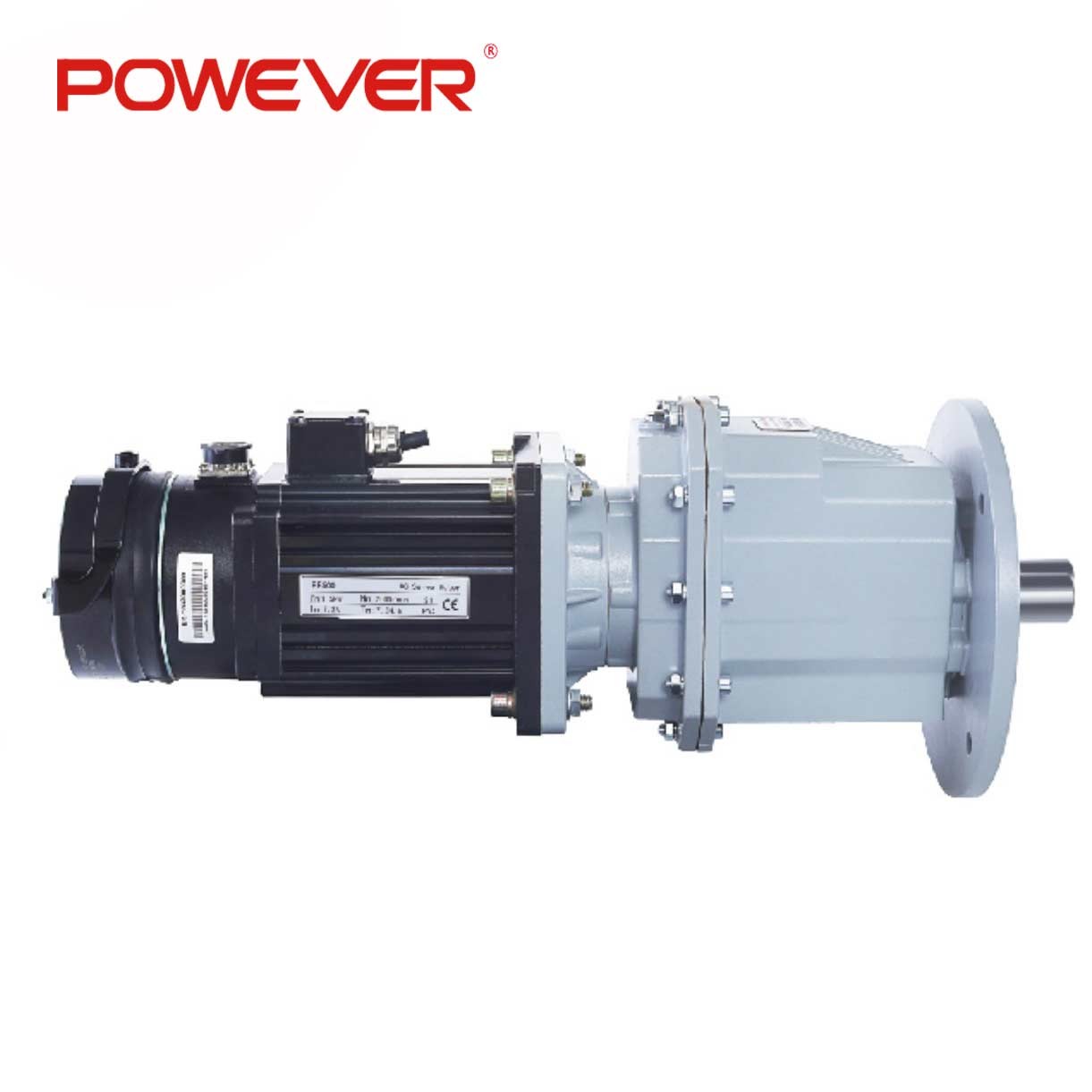

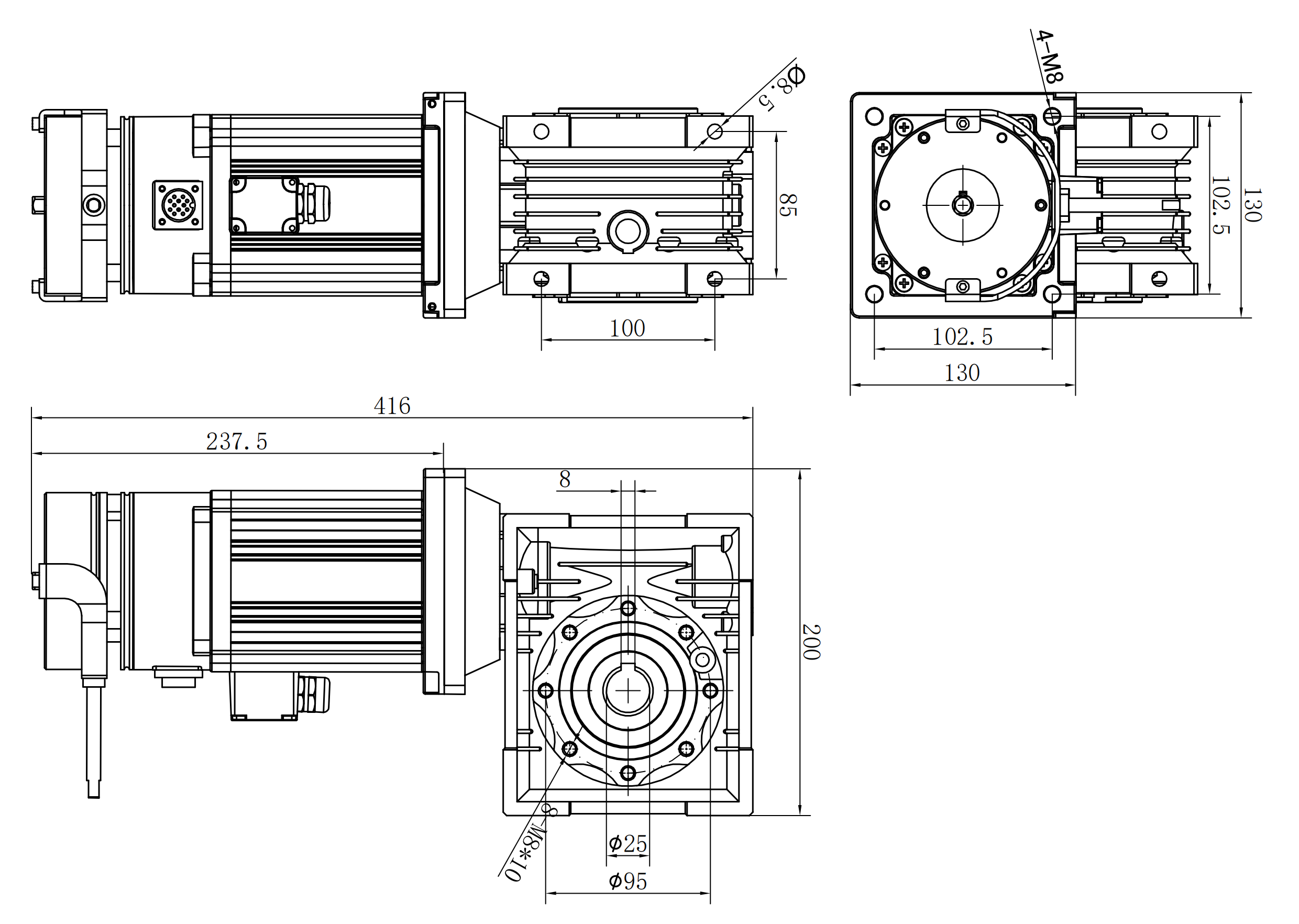

MOTOR
RATIO
1:15*
1:25*
1:30*
MOTOR TYPE
- - -Servo Motor- - -
WORKING SYSTEM
S1
POWER W
- - -1500W- - -
POWER SUPPLY V
- - -1- 220V±10%- - -
OUTPUT SPEED RPM
33~133
20~80
16~67
OUTPUT TORQUE N.M
108
180
216
MAX DOOR AREA ㎡
24
32
42
SLOW START AND SLOW STOP
✓
MOTOR IP LEVEL
- - -IP54- - -
WORKING ENVIRONMENT ℃
- - --10~+40- - -
HOLLOW SHAFT MM
25*
DIGITAL LIMIT
✓
PROXIMITY SWITCH
- - -Compatible- - -
DOOR OPENING AND CLOSING SPEED
- - -Adjustable- - -
SLOW START AND SLOW STOP
✓
RELAY OUTPUT
4
HANDLE
- - -Option- - -
WEIGHT
- - -16.4kg- - -
CE CERTIFICATION
✓

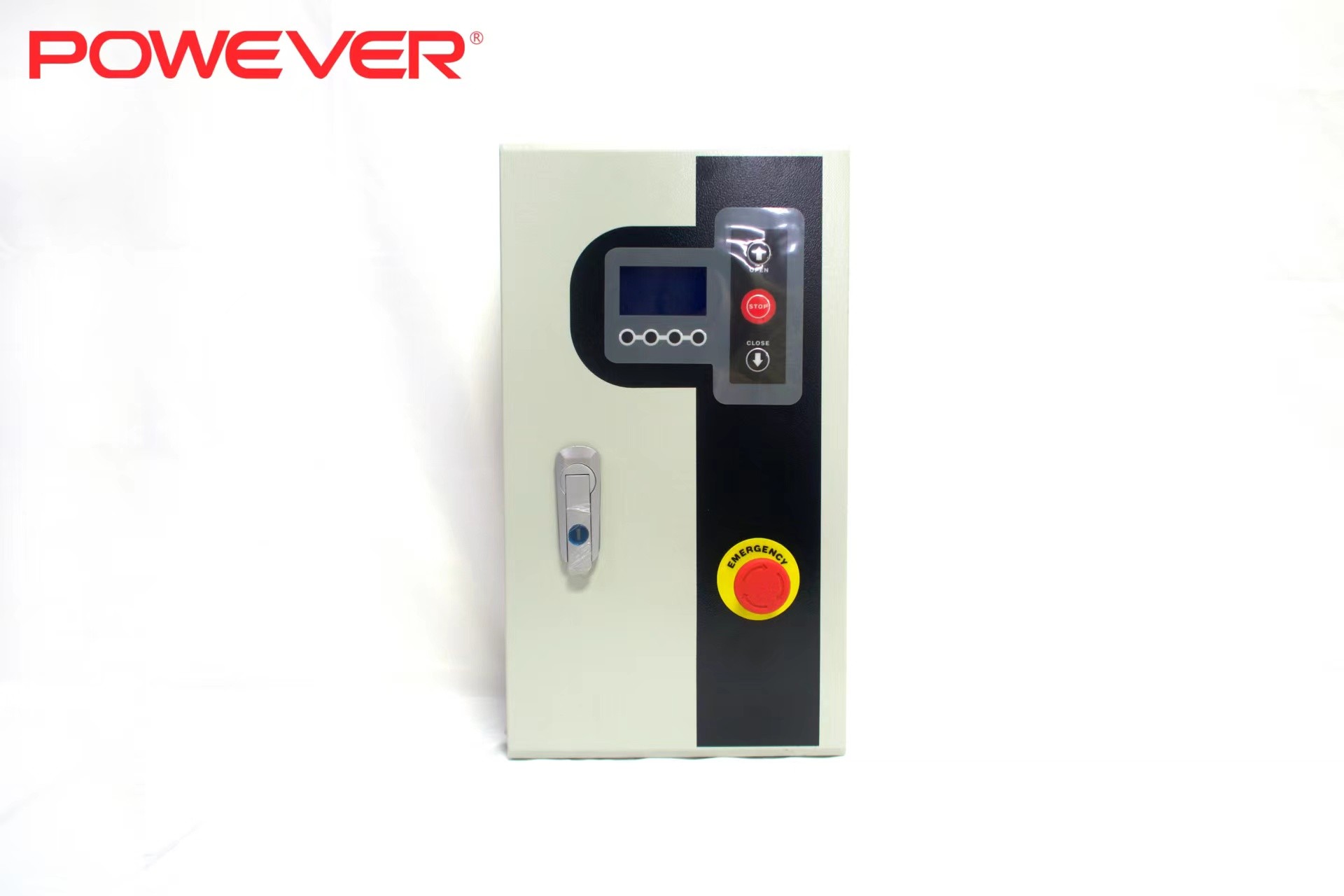

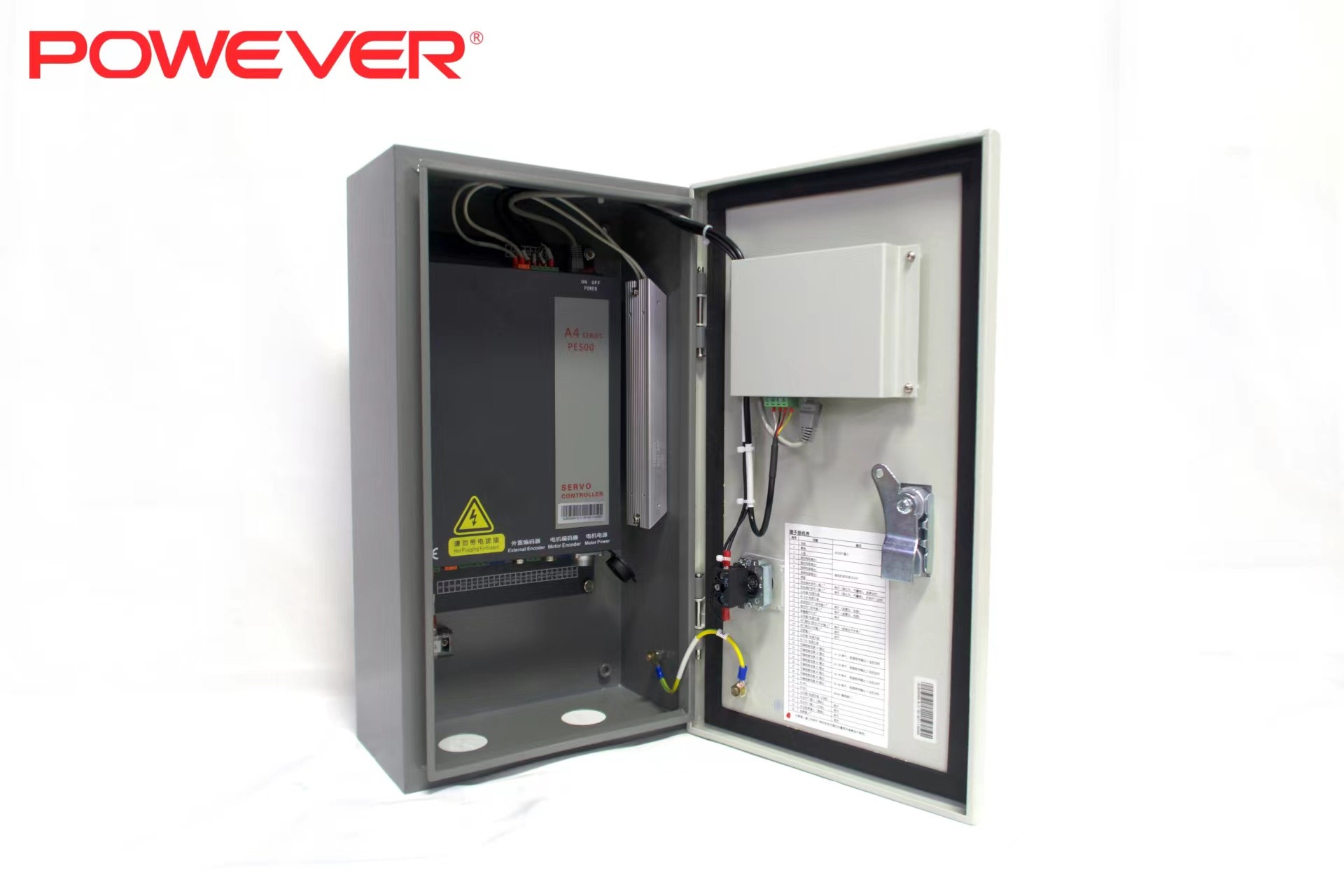

CONTROLLER
CONTROLLER DIMENSIONS MM
450*250*148
DISPLAY
4 Lines Text Display
OPENING AND CLOSING SPEED SETTINGS
✓
SOFT START AND SOFT STOP
✓
OPENING AND CLOSING SLOWDOWN DISTRICT
✓
AUTOMATIC CLOSING DELAY(SECONDS)
1~240*
PARTIAL OPENING HEIGHT (%)
✓
OPERATION STATUS DISPLAY
Current/Speed/Height ,Three modes
ERROR REPORT
✓
FAULT MEMORY
✓
MAINTENANCE REMINDER
✓
JOG MODE
✓
MOTOR REVERSE RUNNING
✓
NC/NO SWITCHING
✓
ANTI-FROZEN SHAKING
✓
TORQUE ADJUSTMENT
✓
OPENING DELAY
✓
AUTOMATIC TEST
✓
MAINTENANCE INFORMATION
✓
AIR SWITCH
×
OPEN/CLOSE/STOP INPUT
✓
RS485
✓
SAFETY SIGNAL 1 INPUT
✓
SAFETY SIGNAL 2 INPUT
✓
PARTIAL OPENING SIGNAL INPUT
✓
AUTOMATIC FULLY OPENING SIGNAL INPUT
✓
MANUAL/AUTOMATIC SWITCHING INPUT
✓
INTERLOCK INPUT
✓
PROGRAMMABLE RELAY OUTPUT
✓
DC24V OUTPUT
✓
WEIGHT
7.0kg
We've achieved precise control over position, speed, and torque with a fully closed-loop servo system. Our high-precision
electronic limits ensure there's no deviation during long-term operation. Also eliminating the need for climbing to set limits and ensuring operator safety.
2. Stable
Our integrated design includes EMC electromagnetic compatibility features. We continuously monitor motor output data in real-time, allowing us to assess the status of balance systems like torsion springs and tension springs, as well as detect any jamming point.
Our system offers adjustable speeds for flexible operation. The lifting door system can reach a rated output speed of 133RMP, with a maximum lifting speed of 1.95M/s.
The system operates smoothly without any shaking, minimizing the impact on its mechanical structure and significantly extending its service life.
5. Security
Our system is equipped with various protection methods, including overvoltage, undervoltage, overcurrent, and short circuit protection. With an emergency signal response time of under 30 milliseconds, we ensure the safety of both people and objects.
