C35 Industrial Door Operator for Sectional Doors
Product Item : C35
Category：C35
Overview
The C35 servo motor is a balanced medium-duty solution for standard industrial doors. Equipped with precise servo positioning and stable power output, it ensures smooth and accurate door movement even under frequent operation. Its durable structure and flexible control options make it suitable for factories, logistics passages, and workshop entrances.

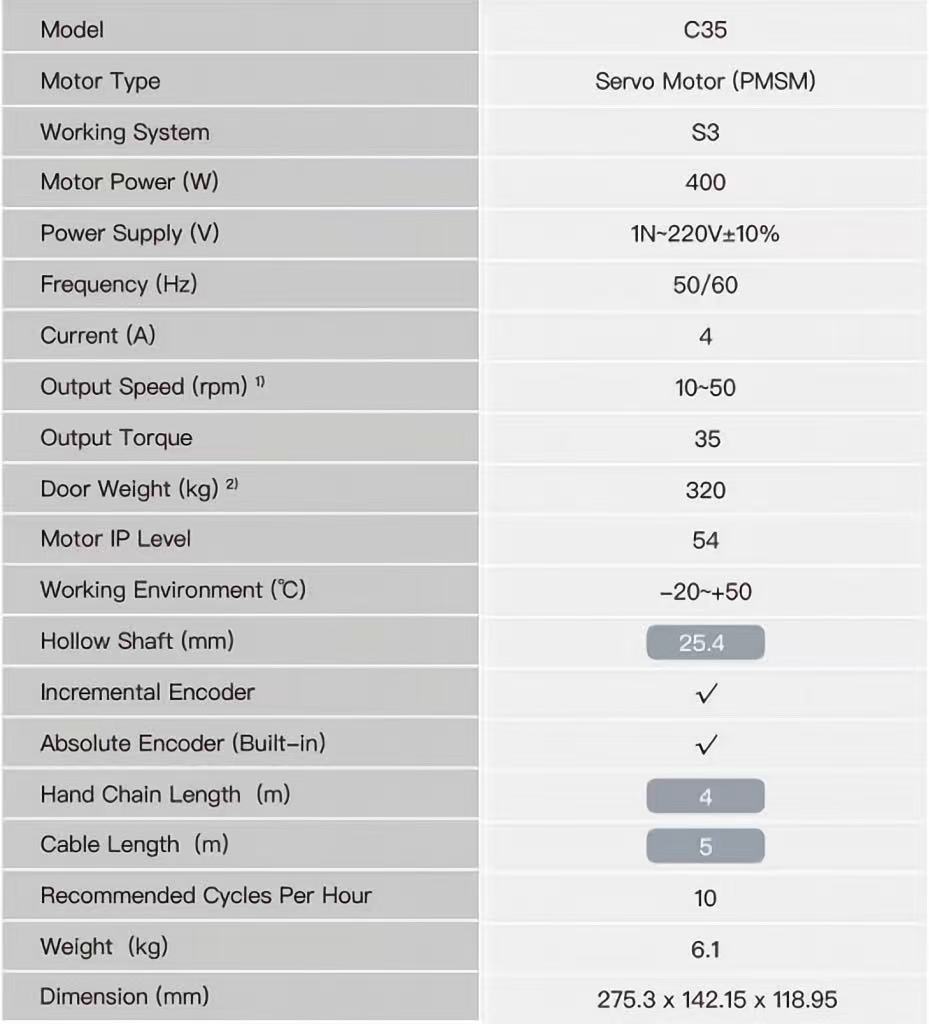

Technical Specifications
Motor

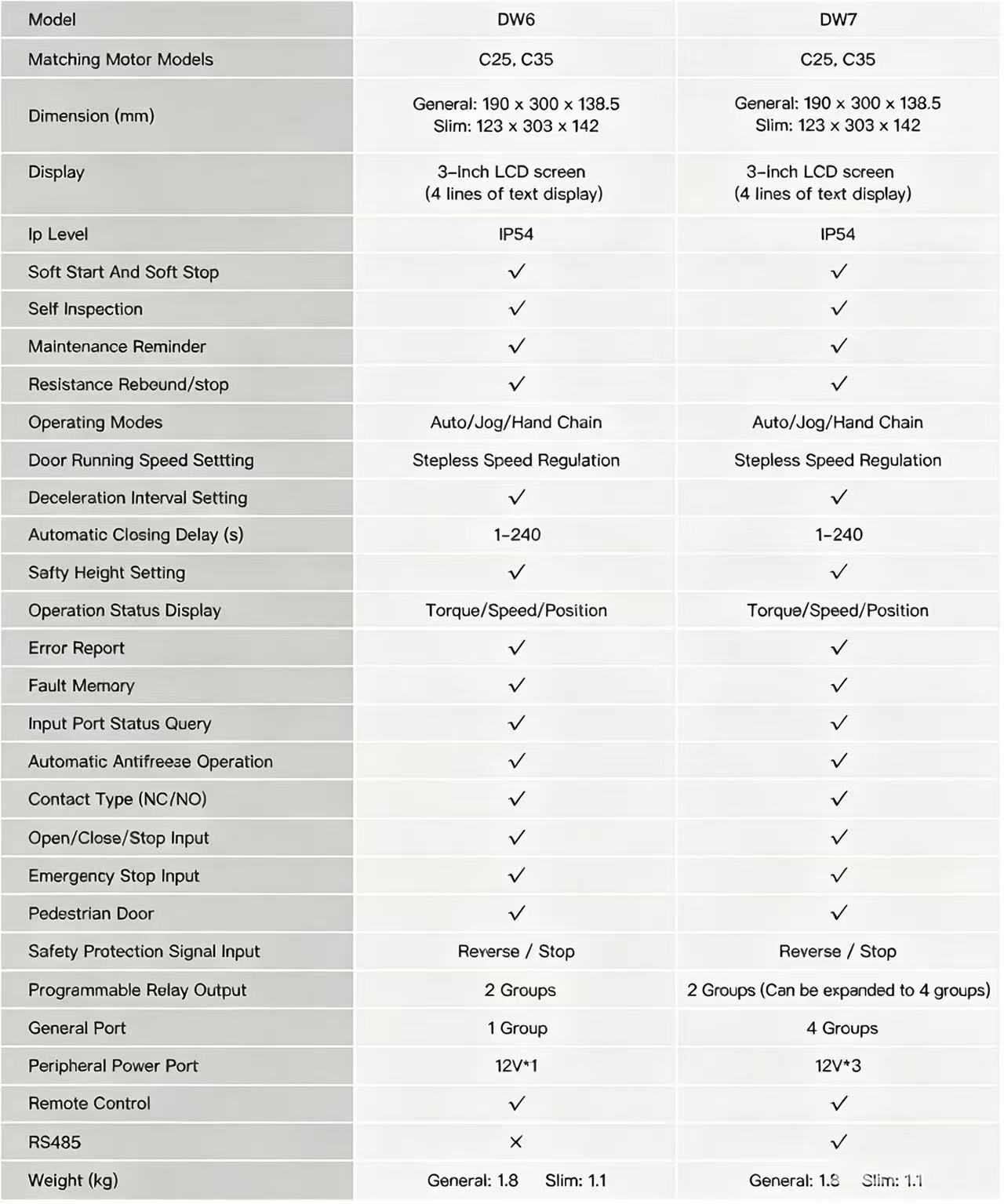

Controller

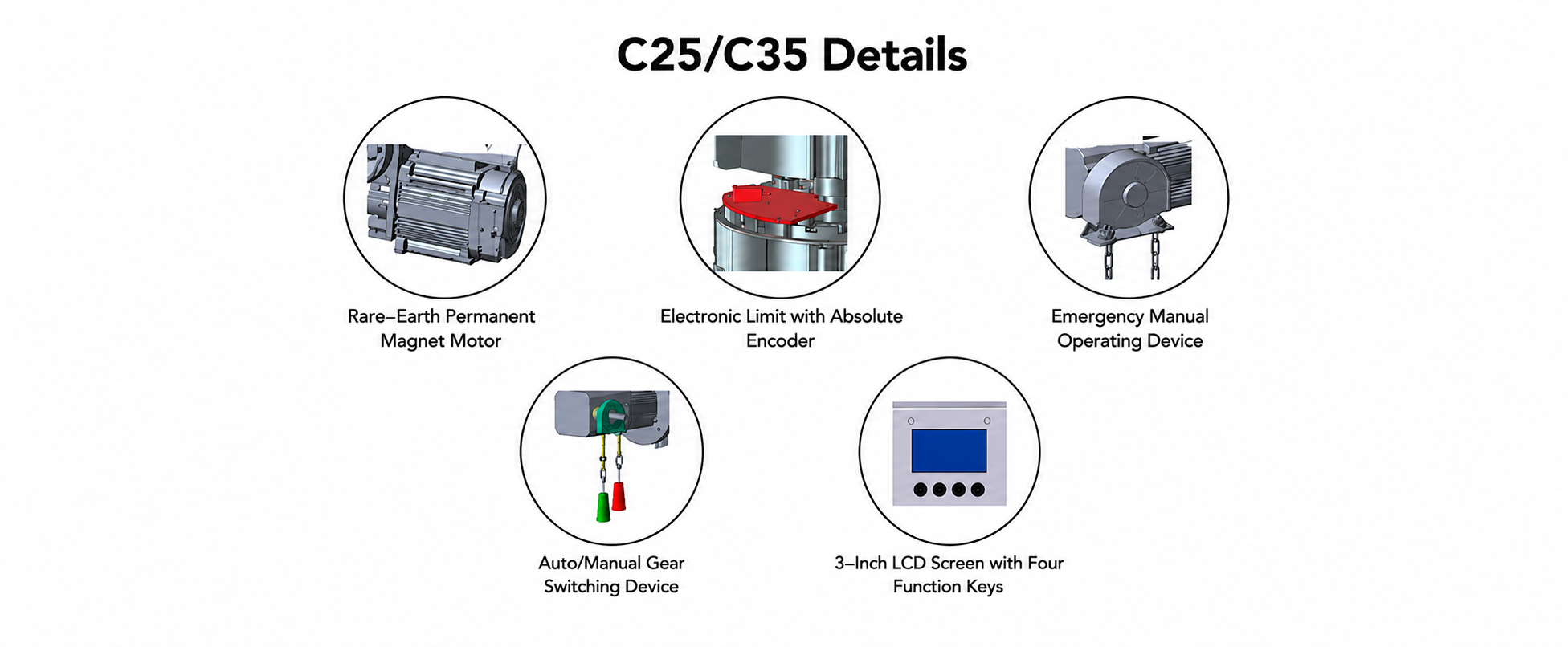

Features & Details
Key Benefits
-
Security
The C series is equipped with comprehensive electrical protection, including overvoltage, undervoltage, overcurrent, and short-circuit protection. With an emergency signal response time of under 30 milliseconds, it ensures the safety of personnel, vehicles, and goods at all times. -
Efficient
Designed for high-frequency use, the system offers adjustable speeds for flexible operation. The rated output speed reaches 133RPM, supporting a maximum lifting speed of 1.95m/s, significantly improving logistics and production efficiency. -
Accurate
Precise control over position, speed, and torque is achieved via a fully closed-loop servo system. High-precision electronic limits eliminate position deviation, ensuring consistent door operation. -
Less Impact
The system operates smoothly without shaking or vibration, minimizing mechanical stress on torsion springs, guide rails, and door panels, thus extending the overall service life of the door. -
Stable
Integrated EMC electromagnetic compatibility features ensure stable operation in complex industrial environments. Real-time motor output monitoring allows assessment of balance system health (springs, cables) and detection of any jamming points.
