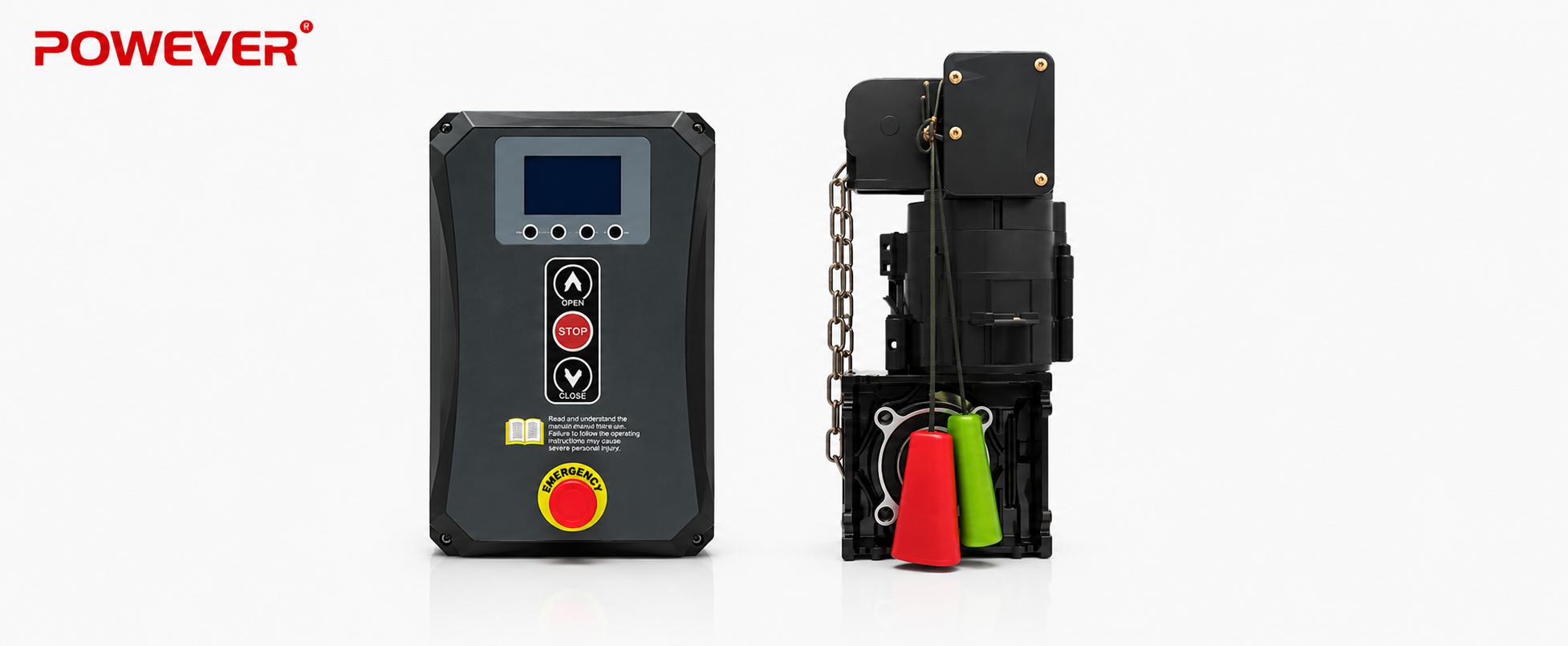

C60 Industrial Door Operator for Sectional Doors
Product Item : C60
Category：C60
Overview
The C60 servo motor is a high-power heavy-duty solution engineered for large industrial doors. With strong torque output, stable speed control, and reliable long-term operation, it performs efficiently in demanding industrial environments. Its robust structure and advanced safety features make it ideal for logistics centers, cold storage doors, and large factory entrances.
Technical Specifications

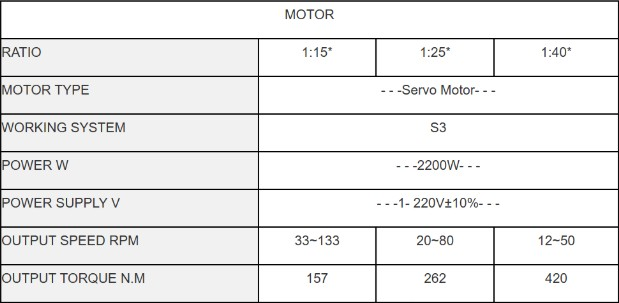

Motor

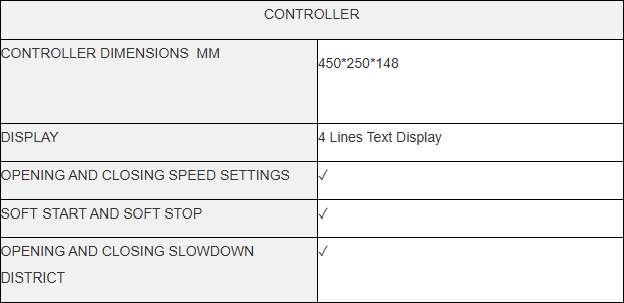

Controller

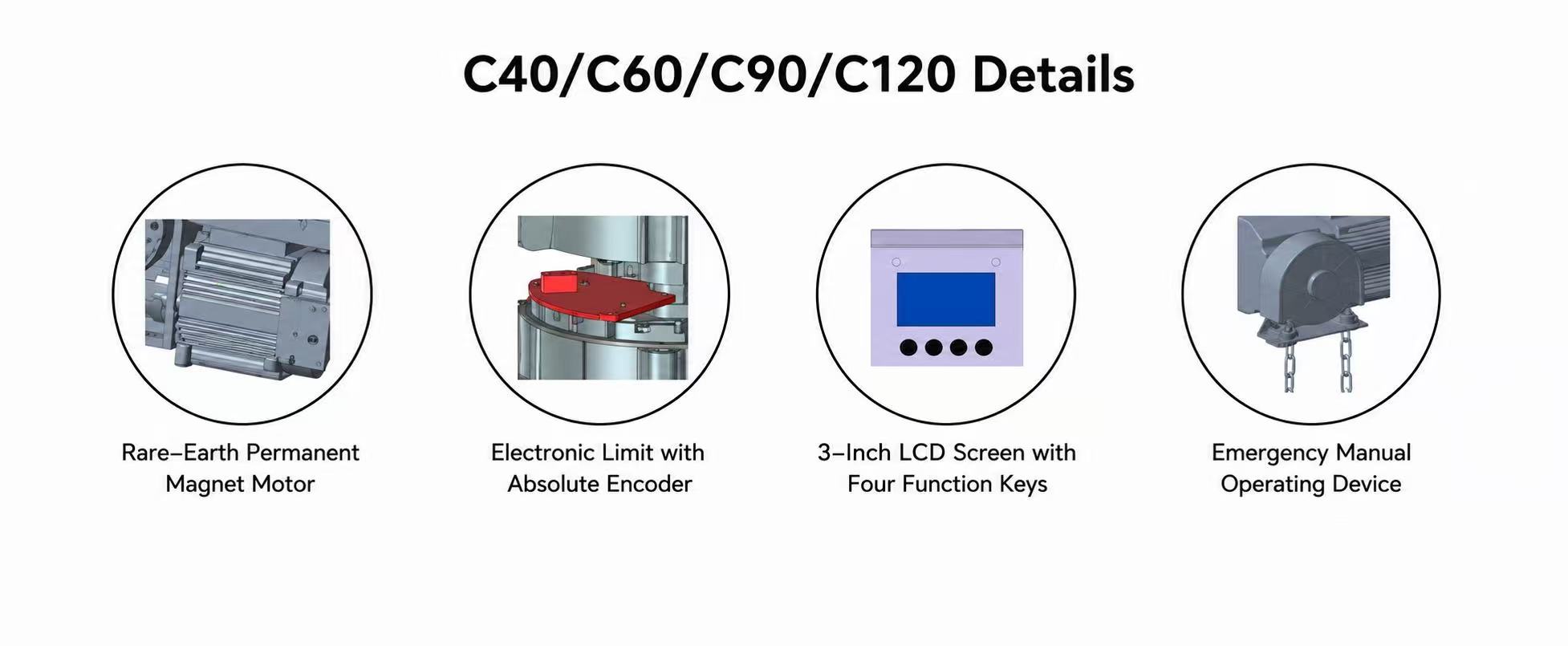

Features & Details
Key Benefits
-
Security
The C series is equipped with comprehensive electrical protection, including overvoltage, undervoltage, overcurrent, and short-circuit protection. With an emergency signal response time of under 30 milliseconds, it ensures the safety of personnel, vehicles, and goods at all times. -
Efficient
Designed for high-frequency use, the system offers adjustable speeds for flexible operation. The rated output speed reaches 133RPM, supporting a maximum lifting speed of 1.95m/s, significantly improving logistics and production efficiency. -
Accurate
Precise control over position, speed, and torque is achieved via a fully closed-loop servo system. High-precision electronic limits eliminate position deviation, ensuring consistent door operation. -
Less Impact
The system operates smoothly without shaking or vibration, minimizing mechanical stress on torsion springs, guide rails, and door panels, thus extending the overall service life of the door. -
Stable
Integrated EMC electromagnetic compatibility features ensure stable operation in complex industrial environments. Real-time motor output monitoring allows assessment of balance system health (springs, cables) and detection of any jamming points.
