C40 Industrial Door Operator for Sectional Doors
Product Item : C40
Category：C40
Overview

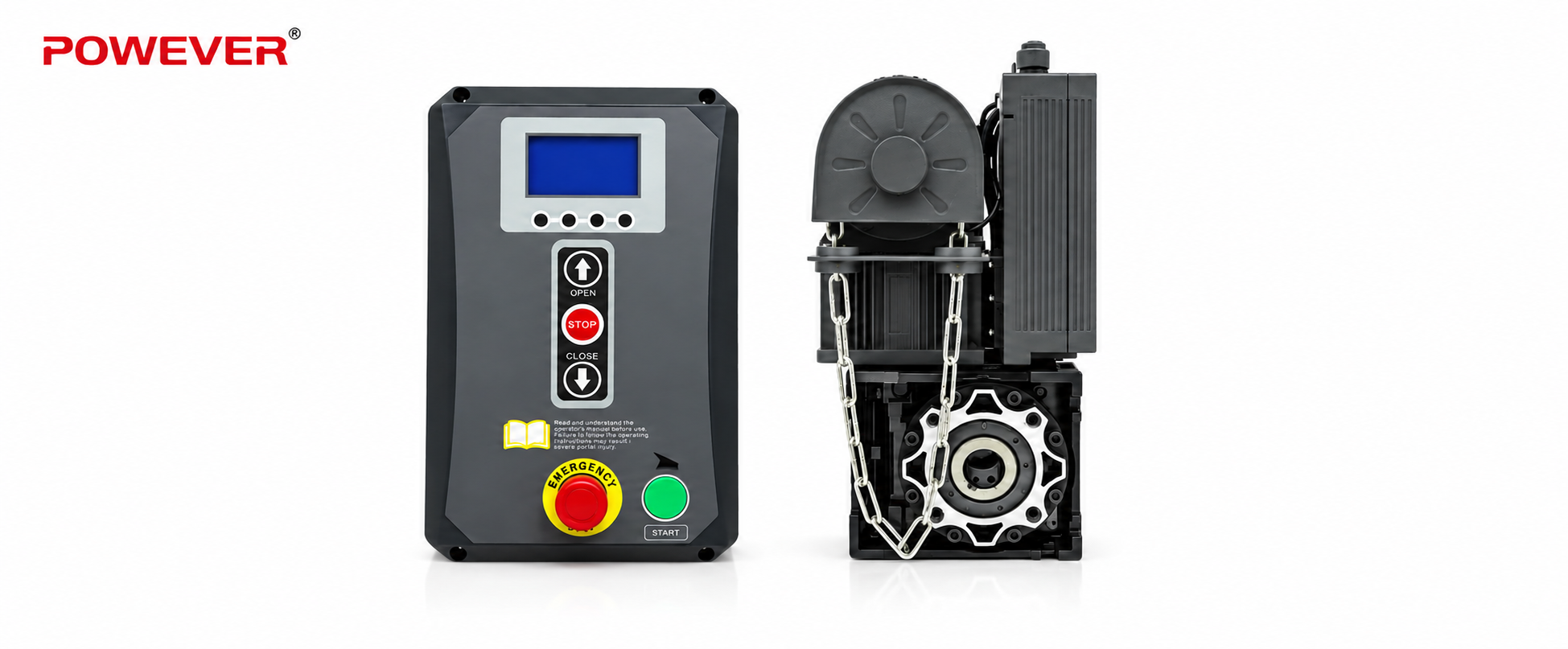

The C40 servo motor is an upgraded medium-duty model designed for higher efficiency and frequent operation environments. Featuring soft start and stop technology, precise positioning, and enhanced load capacity, it reduces door impact and improves overall service life. It is widely used in industrial sectional doors, warehouse doors, and commercial access systems.
Technical Specifications

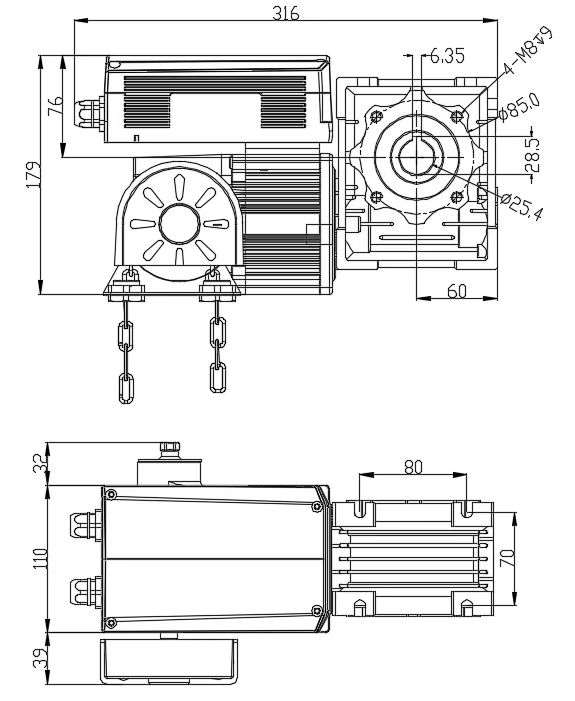

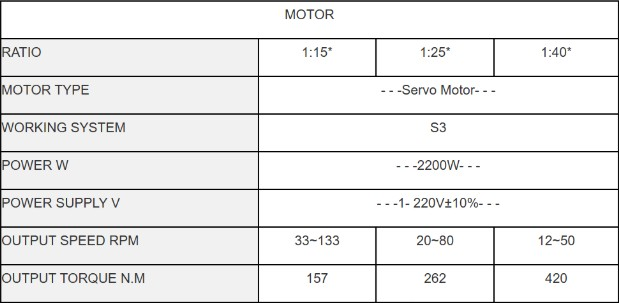

Motor

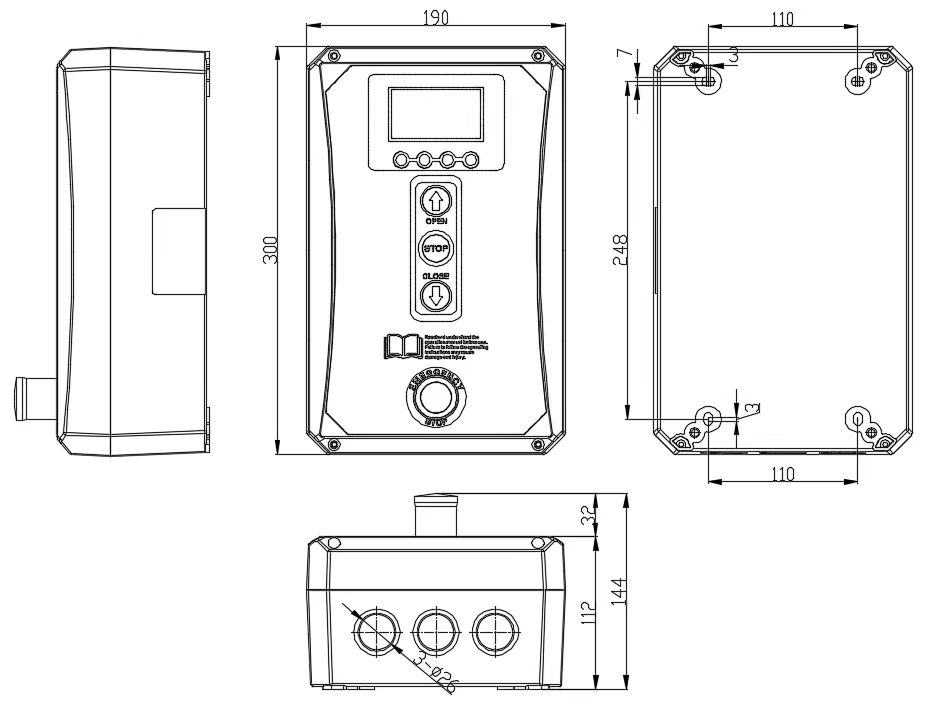

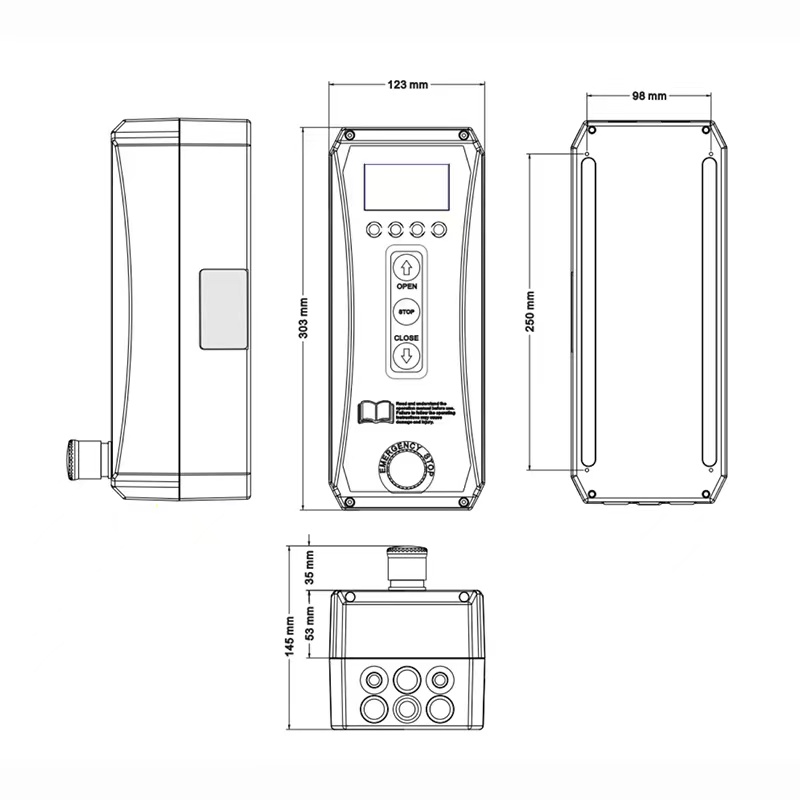

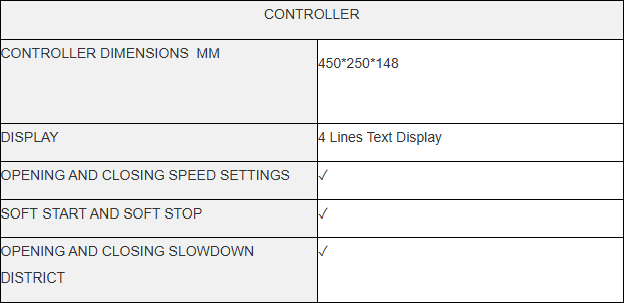

Controller
Features & Details
Key Benefits
-
Security
The C series is equipped with comprehensive electrical protection, including overvoltage, undervoltage, overcurrent, and short-circuit protection. With an emergency signal response time of under 30 milliseconds, it ensures the safety of personnel, vehicles, and goods at all times. -
Efficient
Designed for high-frequency use, the system offers adjustable speeds for flexible operation. The rated output speed reaches 133RPM, supporting a maximum lifting speed of 1.95m/s, significantly improving logistics and production efficiency. -
Accurate
Precise control over position, speed, and torque is achieved via a fully closed-loop servo system. High-precision electronic limits eliminate position deviation, ensuring consistent door operation. -
Less Impact
The system operates smoothly without shaking or vibration, minimizing mechanical stress on torsion springs, guide rails, and door panels, thus extending the overall service life of the door. -
Stable
Integrated EMC electromagnetic compatibility features ensure stable operation in complex industrial environments. Real-time motor output monitoring allows assessment of balance system health (springs, cables) and detection of any jamming points.
