C25 Industrial Door Operator for Sectional Doors
Product Item : C25
Category：C25
Overview

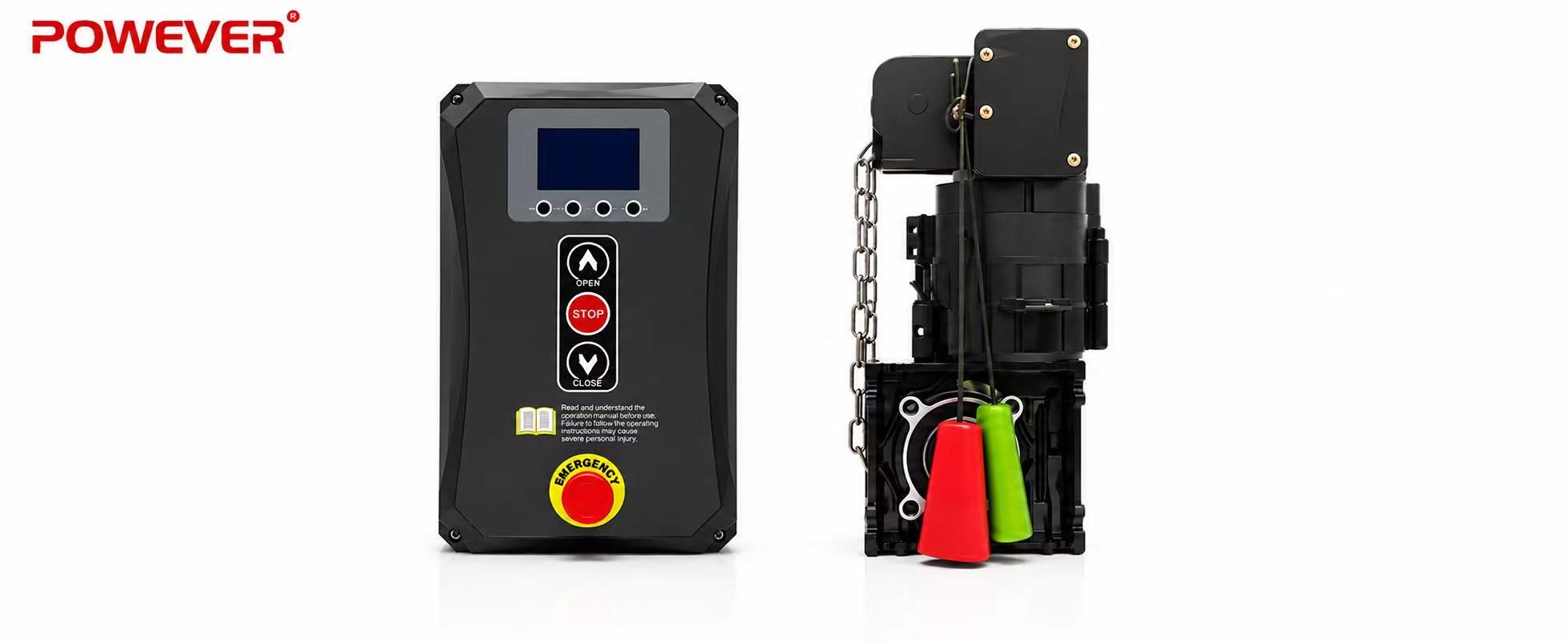

The C25 servo motor is a compact and cost-effective solution designed for small industrial sectional doors. Featuring quiet operation, low power consumption, and easy installation, it is ideal for garages, small warehouses, and light-duty industrial applications. With integrated safety protection and stable servo control, the C25 delivers reliable daily performance for light-load door systems.

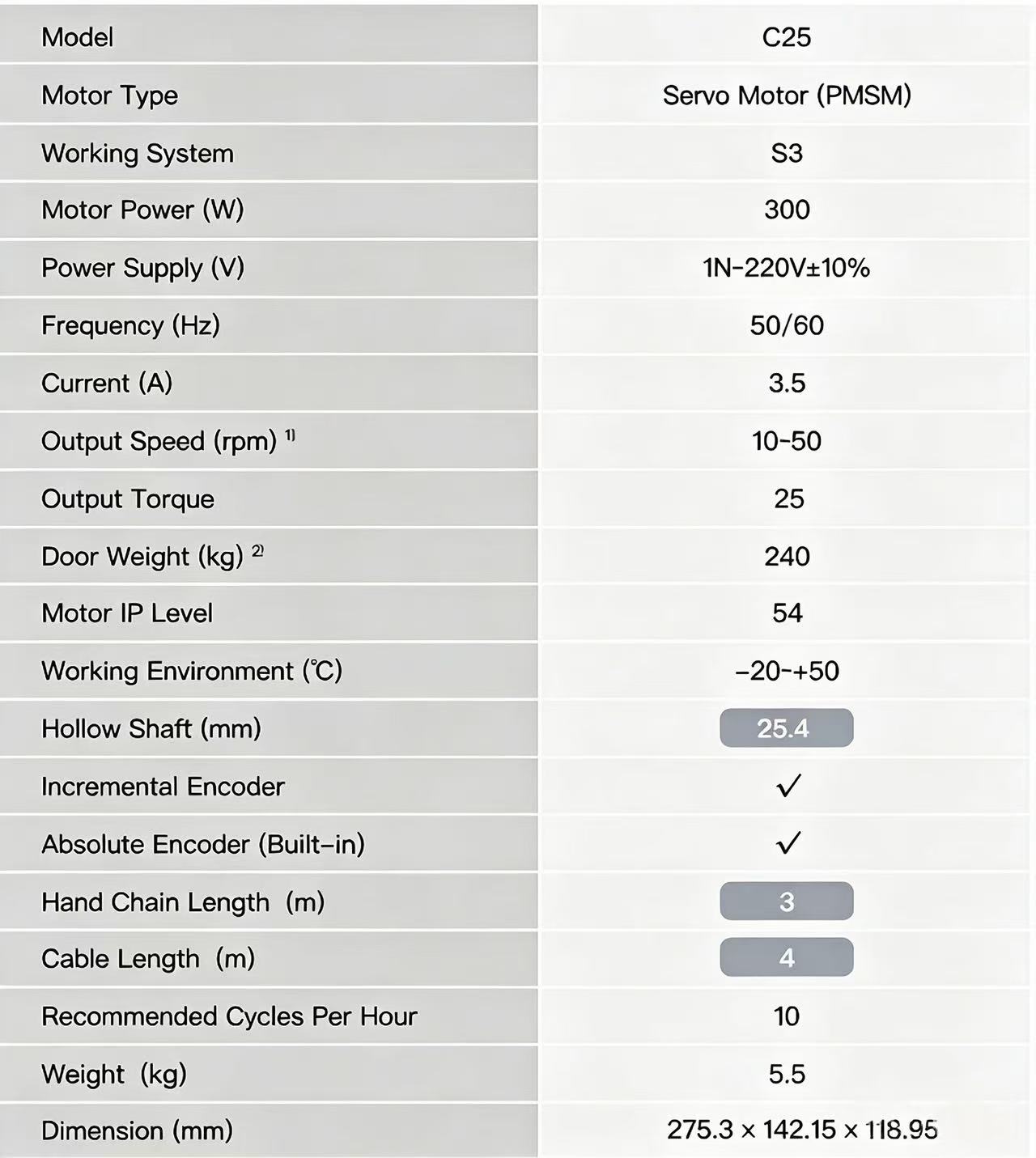

Technical Specifications
Motor

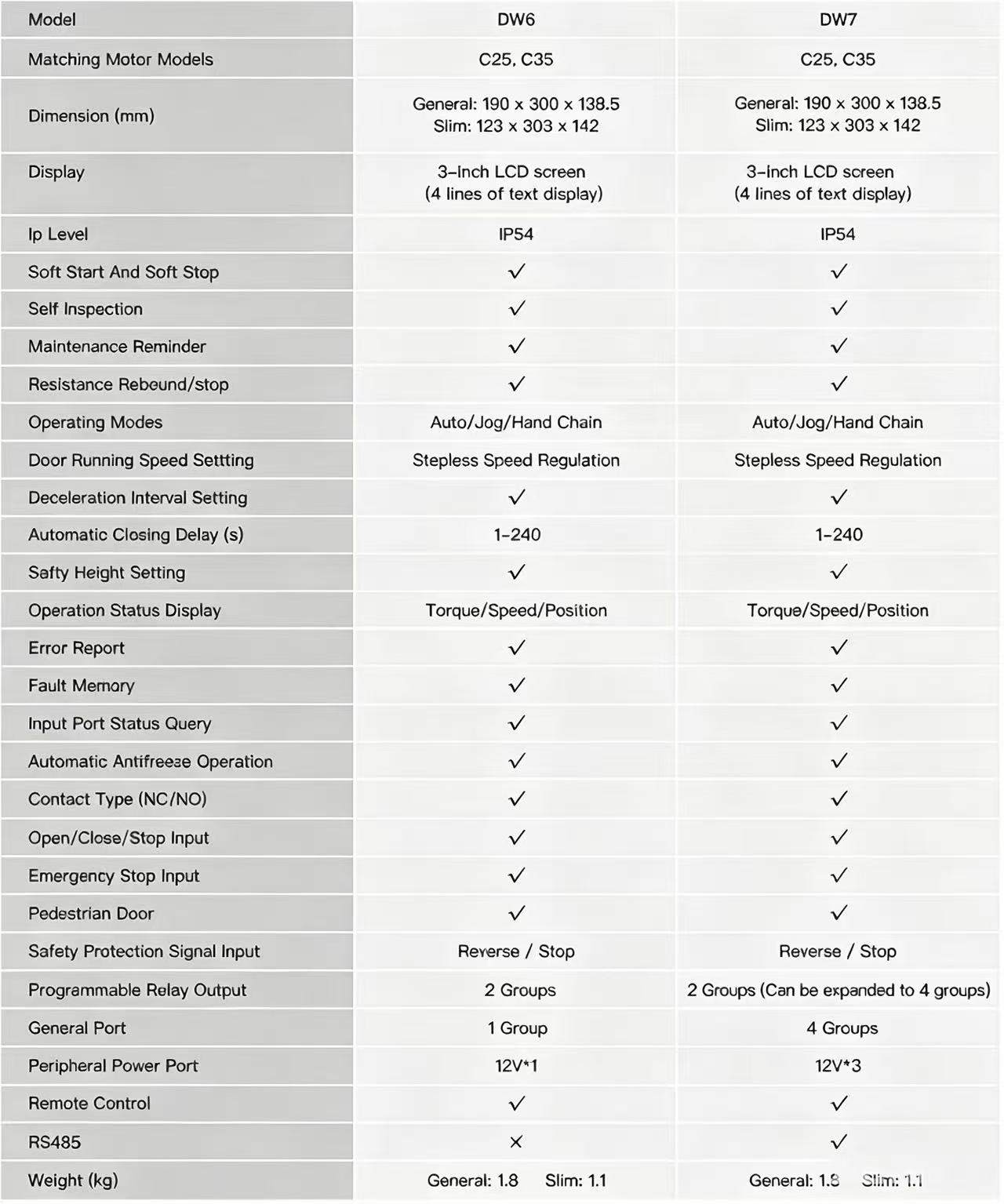

Controller
Features & Details
Key Benefits
-
Security
The C series is equipped with comprehensive electrical protection, including overvoltage, undervoltage, overcurrent, and short-circuit protection. With an emergency signal response time of under 30 milliseconds, it ensures the safety of personnel, vehicles, and goods at all times. -
Efficient
Designed for high-frequency use, the system offers adjustable speeds for flexible operation. The rated output speed reaches 133RPM, supporting a maximum lifting speed of 1.95m/s, significantly improving logistics and production efficiency. -
Accurate
Precise control over position, speed, and torque is achieved via a fully closed-loop servo system. High-precision electronic limits eliminate position deviation, ensuring consistent door operation. -
Less Impact
The system operates smoothly without shaking or vibration, minimizing mechanical stress on torsion springs, guide rails, and door panels, thus extending the overall service life of the door. -
Stable
Integrated EMC electromagnetic compatibility features ensure stable operation in complex industrial environments. Real-time motor output monitoring allows assessment of balance system health (springs, cables) and detection of any jamming points.
